Code: 40776

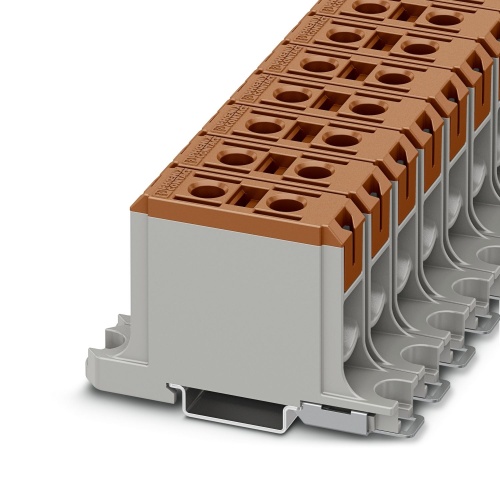

Phoenix Contact 1086470 High-current terminal block UBAL 50 BN
Normally In Stock
UBAL 50 BN Phoenix Contact 1086470 High-current Terminal Block - UBAL 50 BN Screw Connection 1 Level 19.2 mm with . Not Grounded, Not Fused Brown. 1000 Volt, 145 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$17.08
Sale Price
$14.23
MUST BUY IN PACKS OF 20
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1086470 The terminal block has a high current capacity with a nominal voltage of 1000 V and an impressive nominal current rating of 145 A. It features two connections and one position for easy installation, secured by screw connections that can accommodate cross sections ranging from 4 mm2 to 50 mm2. The mounting type is NS 35/15 or NS 35/7.5 and it comes in a brown color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
19.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Component Color
Brown
Terminal Block Min Wire Size
6
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
145 Amp
Sub Component
Feed-Through Terminal Block
Sub Component
High-Current Terminal Block
Features
Maintenance-free terminal points that are greased beforehand simplify the connection of aluminum conductors
Tailor-made screw connection for multi-stranded aluminum conductors and copper wires
Extremely robust housing made from fiberglass-reinforced polyamide with V0 approval
The special design of the UBAL enables the simultaneous connection of aluminum and copper conductors in various connections
Downloads
Phoenix 1086470 CAD data International.dxfPhoenix 1086470 CAD data International.pdfPhoenix 1086470 CAD data International.stpPhoenix 1086470 Manufacturers declaration International-2.pdfPhoenix 1086470 Manufacturers declaration International.pdfPhoenix 1086470 Safety note English.pdfPhoenix 1086470 Tender Text English.zip
