Code: 40773

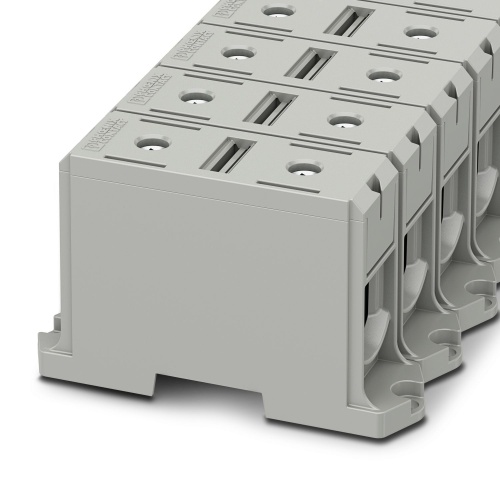

Phoenix Contact 1086505 High-current terminal block UBAL 240
Normally In Stock
UBAL 240 Phoenix Contact 1086505 High-current Terminal Block - UBAL 240 Screw Connection 1 Level 37.5 mm with . Not Grounded, Not Fused Gray. 1000 Volt, 380 Amp max rating.
Condition: New
Usually ships within 7-14 days. Call for ship time.$48.80
Sale Price
$40.67
MUST BUY IN PACKS OF 5
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1086505 A high-current terminal block features a nominal voltage of 1000 V and a nominal current capacity of 380 A, accommodating two connections in one position with screw connections, suitable for rated cross sections ranging from 35 mm² to 240 mm², mounted using screws, and available in a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
37.5 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
500
Terminal Block Amperage
380 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
High-Current Terminal Block
Features
Maintenance-free terminal points that are greased beforehand simplify the connection of aluminum conductors
Tailor-made screw connection for multi-stranded aluminum conductors and copper wires
Extremely robust housing made from fiberglass-reinforced polyamide with V0 approval
The special design of the UBAL enables the simultaneous connection of aluminum and copper conductors in various connections
Downloads
Phoenix 1086505 CAD data International.dxfPhoenix 1086505 CAD data International.pdfPhoenix 1086505 CAD data International.stpPhoenix 1086505 Manufacturers declaration International-2.pdfPhoenix 1086505 Manufacturers declaration International.pdfPhoenix 1086505 Safety note English.pdfPhoenix 1086505 Tender Text English.zip
