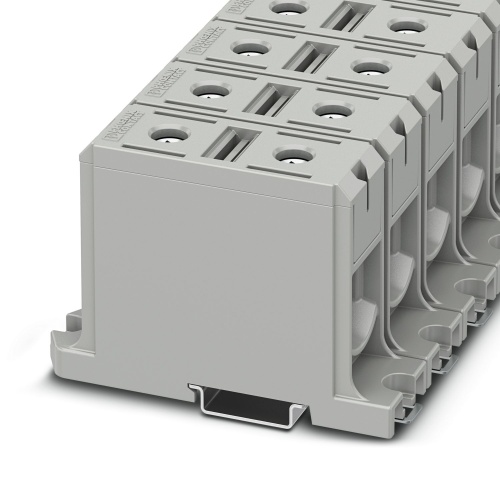

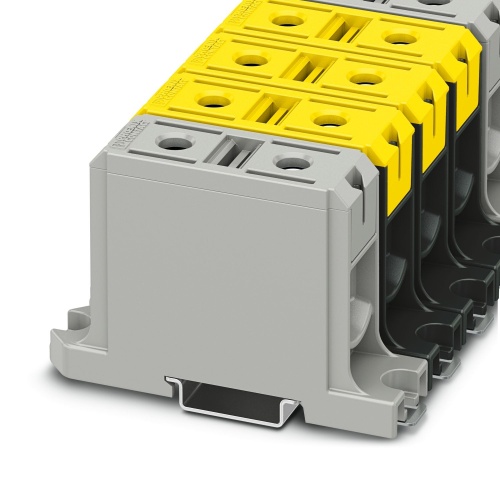

Phoenix Contact 1086498 High-current terminal block UBAL 150
Normally In Stock
Code: 40772
UBAL 150 Phoenix Contact 1086498 High-current Terminal Block - UBAL 150 Screw Connection 1 Level 30.5 mm with . Not Grounded, Not Fused Gray. 1000 Volt, 290 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$39.16
Sale Price
$32.63
MUST BUY IN PACKS OF10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1086498 The terminal block features a high-current rating of 290 A at 1000 V and is designed for screw connections. It has two connection points with one position available. The cross-sectional area of the rated section is 150 mm2, ranging from 35 mm2 to 150 mm2 in smaller sections. This terminal block is mounted using the NS 35/15 and NS 35/7.5 mounting types, and it has a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
30.5 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
2
Terminal Block Max Wire Size
300
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
290 Amp
Sub Component
Feed-Through Terminal Block
Sub Component
High-Current Terminal Block
Features
Tailor-made screw connection for multi-stranded aluminum conductors and copper wires
Maintenance-free terminal points that are greased beforehand simplify the connection of aluminum conductors
Extremely robust housing made from fiberglass-reinforced polyamide with V0 approval
The special design of the UBAL enables the simultaneous connection of aluminum and copper conductors in various connections
Downloads
Phoenix 1086498 CAD data International.dxfPhoenix 1086498 CAD data International.pdfPhoenix 1086498 CAD data International.stpPhoenix 1086498 Manufacturers declaration International-2.pdfPhoenix 1086498 Manufacturers declaration International.pdfPhoenix 1086498 Safety note English.pdfPhoenix 1086498 Tender Text English.zip
