Code: 40771

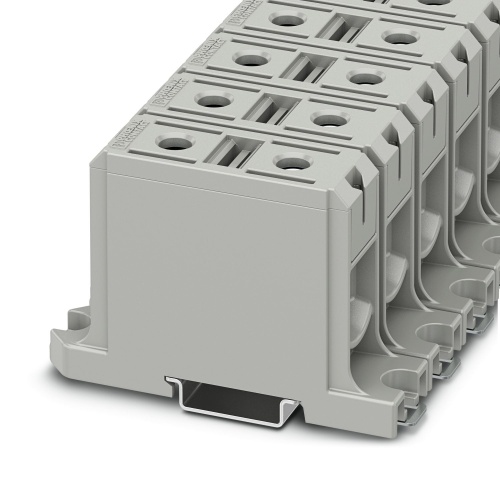

Phoenix Contact 1086475 High-current terminal block UBAL 95
Normally In Stock
UBAL 95 Phoenix Contact 1086475 High-current Terminal Block - UBAL 95 Screw Connection 1 Level 25.1 mm with . Not Grounded, Not Fused Gray. 1000 Volt, 220 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$30.53
Sale Price
$25.44
MUST BUY IN PACKS OF10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1086475 A high-current terminal block features a nominal voltage of 1000 V and a nominal current capacity of 220 A. It has two connections and one position, utilizing a screw connection method with a rated cross-sectional area of 95 mm2, spanning across an available cross-sectional area of 16 mm2 to 95 mm2. The terminal block is mounted using NS 35/15 or NS 35/7.5 configurations and comes in a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
25.1 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
4
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
220 Amp
Sub Component
Feed-Through Terminal Block
Sub Component
High-Current Terminal Block
Model Type
UBAL
Features
Maintenance-free terminal points that are greased beforehand simplify the connection of aluminum conductors
Tailor-made screw connection for multi-stranded aluminum conductors and copper wires
Extremely robust housing made from fiberglass-reinforced polyamide with V0 approval
The special design of the UBAL enables the simultaneous connection of aluminum and copper conductors in various connections
Downloads
Phoenix 1086475 CAD data International.dxfPhoenix 1086475 CAD data International.pdfPhoenix 1086475 CAD data International.stpPhoenix 1086475 Manufacturers declaration International-2.pdfPhoenix 1086475 Manufacturers declaration International.pdfPhoenix 1086475 Safety note English.pdfPhoenix 1086475 Tender Text English.zip
