Phoenix Contact 3076442 High-current terminal block UKH 70-3L/N/FE
Normally In Stock
Code: 40713
UKH 70-3L/N/FE Phoenix Contact 3076442 High-current Terminal Block - UKH 70-3L/N/FE Screw Connection 1 Level 101.5 mm with 10 Connections. Not Grounded, Not Fused Gray-Blue-Black-Yellow. 1000 Volt, 192 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$327.30
Sale Price
$272.75
MUST BUY IN PACKS OF 2
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3076442 The terminal block features high-current capabilities with a nominal voltage of 1000 V and a maximum current of 192 A. It accommodates 10 connections, arranged in 5 positions, secured by screw connections. The rated cross-sectional area is 70 mm2, spanning from 16 mm2 to 70 mm2, and it can be mounted using several types including NS 35/7,5, NS 35/15, NS 35/15-2,3, and NS 32. The terminal block comes in three distinct colors: gray/blue/black-yellow.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
101.5 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
10
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
4
Terminal Block Component Color
Gray/Blue/Black/Yellow
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
192 Amp
Sub Component
High Current Terminal Block
Sub Component
High-Current Terminal Block
Features

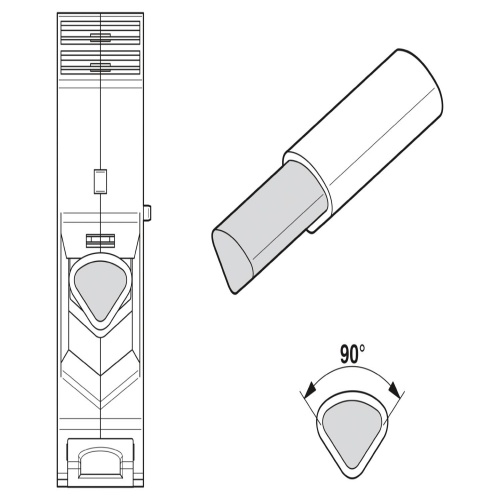

Reliable cable connection is ensured by three-point centering of the conductor in the prismatic sleeve base
Low contact resistance of the contact surface due to ribbing
Screw locking by means of spring-loaded elements in the clamping part
Downloads
Phoenix 3076442 Application Note International.pdfPhoenix 3076442 CAD data International.dxfPhoenix 3076442 CAD data International.pdfPhoenix 3076442 CAD data International.stpPhoenix 3076442 Manufacturers declaration International.pdfPhoenix 3076442 Safety note English.pdfPhoenix 3076442 Tender Text English.zip
