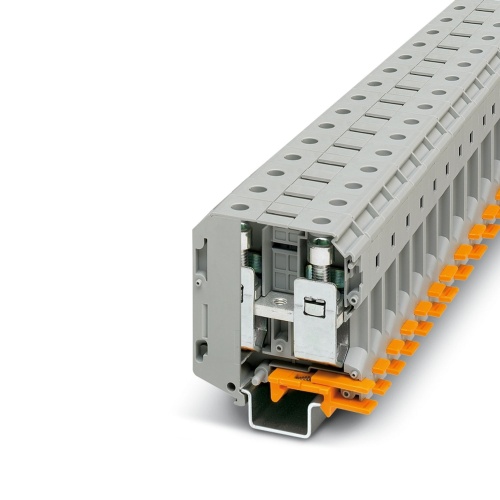

Phoenix Contact 3213140 High-current terminal block UKH 70
Normally In Stock
Code: 40708
UKH 70 Phoenix Contact 3213140 High-current Terminal Block - UKH 70 Screw Connection 1 Level 20.3 mm with 2 Connections. Not Grounded, Not Fused Gray. 1000 Volt, 192 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$63.90
Sale Price
$53.25
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3213140 A high-current terminal block features a nominal voltage of 1000V and can handle a maximum current of 192A. It has two connections and one position for mounting, using a screw connection method with a rated cross-section ranging from 16mm2 to 95mm2. The terminal block is available in various mounting types including NS35/7.5, NS35/15, NS35/15-2.3, and NS32, with a standard color of gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
20.3 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
4
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
192 Amp
Sub Component
High Current Terminal Block
Sub Component
High-Current Terminal Block
Features

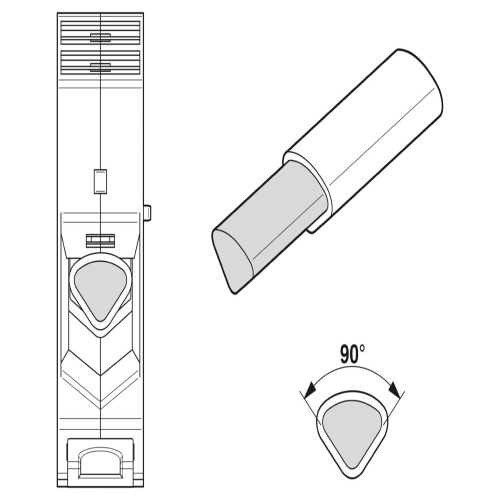

Reliable cable connection is ensured by three-point centering of the conductor in the prismatic sleeve base
Tested for railway applications
Low contact resistance of the contact surface due to ribbing
Screw locking by means of spring-loaded elements in the clamping part
Downloads
Phoenix 3213140 Application Note International.pdfPhoenix 3213140 CAD data International.dxfPhoenix 3213140 CAD data International.pdfPhoenix 3213140 CAD data International.stpPhoenix 3213140 Certification English.pdfPhoenix 3213140 Certification International.pdfPhoenix 3213140 Manufacturers declaration International-2.pdfPhoenix 3213140 Manufacturers declaration International.pdfPhoenix 3213140 Product Information English.pdfPhoenix 3213140 Safety note English.pdfPhoenix 3213140 Tender Text English.zipPhoenix 3213140 User instructions for the Ex Area International.pdf
