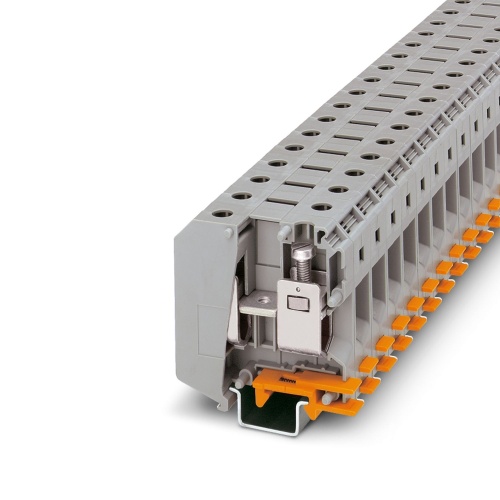

Phoenix Contact 3009118 High-current terminal block UKH 50
Normally In Stock
Code: 40698
UKH 50 Phoenix Contact 3009118 High-current Terminal Block - UKH 50 Screw Connection 1 Level 20 mm with 2 Connections. Not Grounded, Not Fused Gray. 1000 Volt, 150 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$43.74
Sale Price
$36.45
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3009118 The terminal block features a high-current rating with a nominal voltage of 1000 V and a maximum current capacity of 150 A. It has two connection points and is designed for use in one position, secured through screw connections. The cross-sectional area of the rated section ranges from 16 mm2 to 70 mm2, while it is available in various mounting types, including NS 35/7,5, NS 35/15, NS 32, and NS 35/15-2,3.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
20 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
6
Terminal Block Amperage
150 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
High Current Terminal Block
Sub Component
High-Current Terminal Block
Features

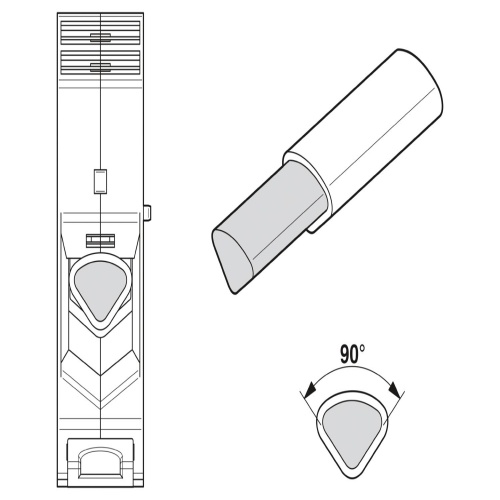

Reliable cable connection is ensured by three-point centering of the conductor in the prismatic sleeve base
Low contact resistance of the contact surface due to ribbing
Screw locking by means of spring-loaded elements in the clamping part
Downloads
Phoenix 3009118 Application Note International.pdfPhoenix 3009118 CAD data International.dxfPhoenix 3009118 CAD data International.pdfPhoenix 3009118 CAD data International.stpPhoenix 3009118 Certification English.pdfPhoenix 3009118 Manufacturers declaration International-2.pdfPhoenix 3009118 Manufacturers declaration International.pdfPhoenix 3009118 Product Information English.pdfPhoenix 3009118 Safety note English.pdfPhoenix 3009118 Tender Text English.zipPhoenix 3009118 User instructions for the Ex Area International.pdf
