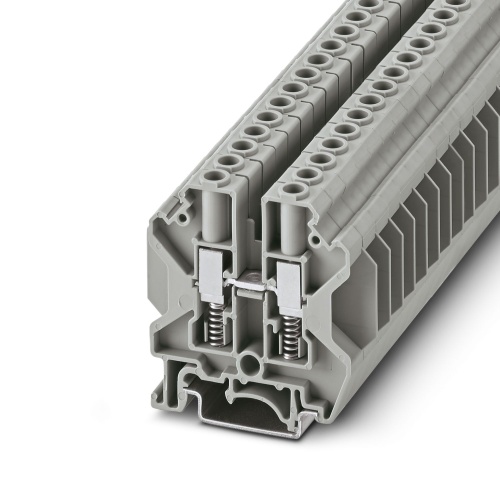

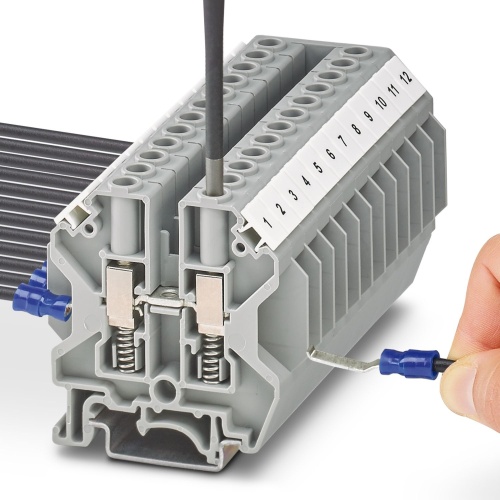

Phoenix Contact 3070341 Feed-through terminal block USST 6
Normally In Stock
Code: 40692
USST 6 Phoenix Contact 3070341 Feed Through Terminal Block - USST 6 Screw Connection 1 Level 8.2 mm with 2 Connections. Not Grounded, Not Fused Gray. 1000 Volt, 41 Amp max rating.
Condition: New
Usually ships within 7-14 days. Call for ship time.$7.98
Sale Price
$6.65
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3070341 The feed-through terminal block features a nominal voltage of 1000 V and a nominal current capacity of 41 A, accommodating up to two connections via screw connections with spring support. The rated cross-sectional areas range from 0.2 mm² to 10 mm², with multiple levels available, including NS 35/7.5, NS 35/15, and NS 32. Additionally, the mounting type is designated as NS 35/7.5, NS 35/15, and NS 32, with a gray coloration.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
8.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
8
Terminal Block Amperage
41 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Features
Large-surface labeling option for every terminal point
Universal foot for mounting on NS 32 and NS 35 DIN rails

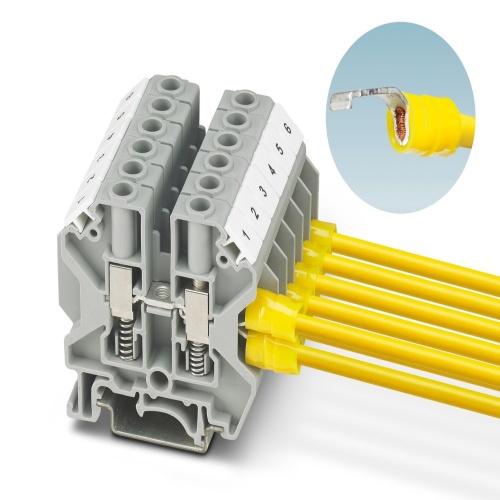

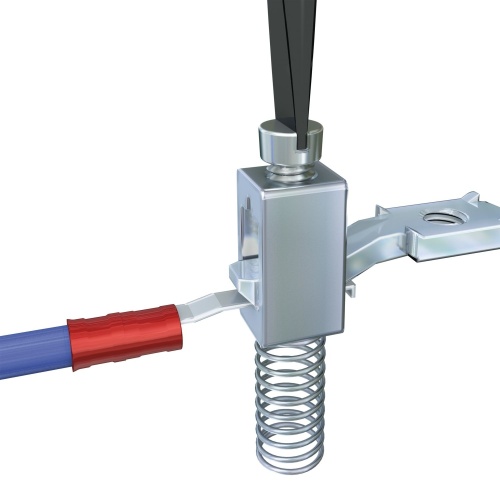

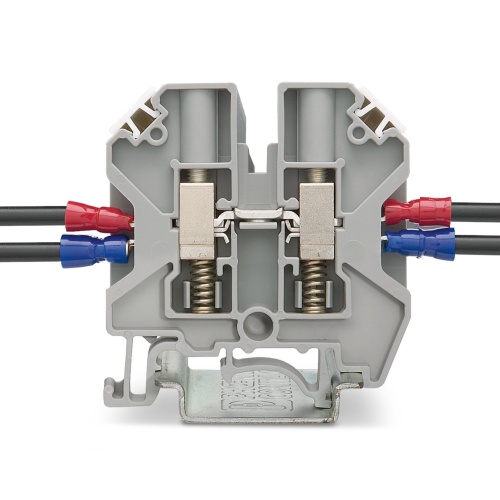

When combined with hook-type cable lugs, the spring-supported screw terminal blocks optimally meet the technical requirements of EATS 50-18

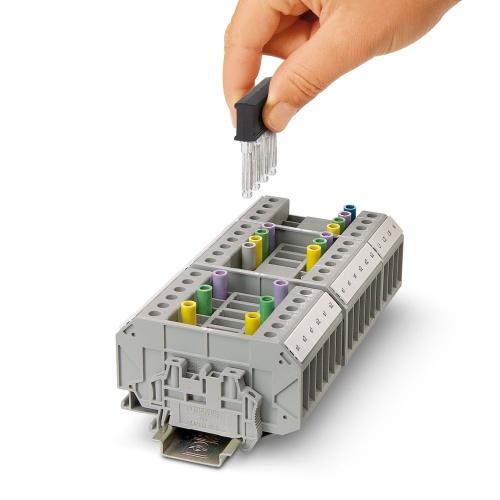

The ISSBI ... isolator bridge bars support switchable cross connections with IS .... Here the screw has the function of a live contact.
The USST ... modular terminal blocks were specifically developed for use in the field of power supply
Downloads
Phoenix 3070341 CAD data International.dxfPhoenix 3070341 CAD data International.pdfPhoenix 3070341 CAD data International.stpPhoenix 3070341 Manufacturers declaration English.pdfPhoenix 3070341 Manufacturers declaration International.pdfPhoenix 3070341 Safety note English.pdfPhoenix 3070341 Tender Text English.zip
