Code: 40587

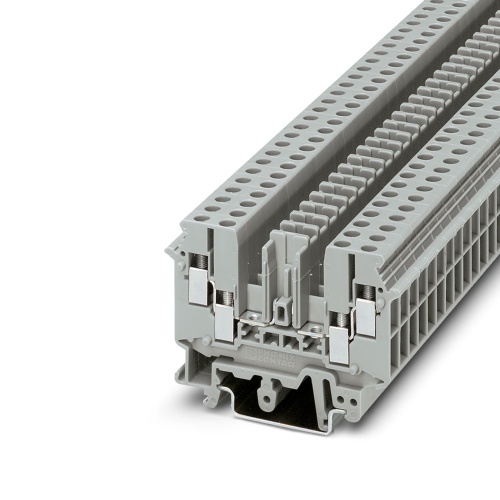

Phoenix Contact 2777014 Disconnect terminal block UDK 4-TG
Normally In Stock
UDK 4-TG Phoenix Contact 2777014 UDK 4-TG Disconnect Terminal Block, nom. voltage: 400 V, nominal current: 16 A
Condition: New
Usually Ships Same day or Next Day$4.49
Sale Price
$3.74
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2777014 The terminal block's specifications include a nominal voltage of 400V and a nominal current of 16A, with connections made via screw connections. The cross-sectional area ranges from 0.2mm² to 6mm², while the plug type determines the actual current and voltage values. Additionally, the connection methods are NS 35/7.5, NS 35/15, or NS 32, and the mounting is done using an NS 35/7.5 or NS 35/15 configuration, with a standard color of gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Disconnect
Removable Disconnect
Terminal Block Amperage
16 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Disconnect Terminal Block
Features
Design width of just 6.2 mm
Downloads
Phoenix 2777014 CAD data International.dxfPhoenix 2777014 CAD data International.pdfPhoenix 2777014 CAD data International.stpPhoenix 2777014 Manufacturers declaration English.pdfPhoenix 2777014 Manufacturers declaration International.pdfPhoenix 2777014 Safety note English.pdfPhoenix 2777014 Tender Text English.zip
