Code: 40586

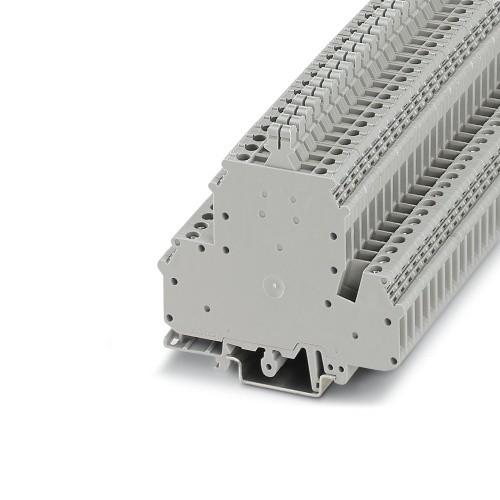

Phoenix Contact 3007055 Disconnect terminal block UKK 5-T
Normally In Stock
UKK 5-T Phoenix Contact 3007055 UKK 5-T Disconnect Terminal Block, with isolating plug, nom. voltage: 400 V, nominal current: 26 A
Condition: New
Usually Ships Same day or Next Day$22.27
Sale Price
$18.56
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3007055 The terminal block has specific requirements for disconnection and connection, with a nominal voltage of 400V and a maximum current of 26A. Two levels of connections are specified, each with a rated cross-section of 4mm2 and a minimum cross-sectional area of 0.2mm2. The connections use screw methods, while the mounting options include NS35/7.5, NS35/15, and NS32, all in gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
24
Terminal Block Disconnect
Removable Disconnect
Terminal Block Amperage
26 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Disconnect Terminal Block
Features
Convenient separation of circuits with a lever-type disconnect knife, isolating plug, or rotary contact
User-friendly current measurement via the testing option on either side of the disconnect point
Safe operation, as the disconnect lever is latched in the end positions
Clear identification of the disconnect point with color marking
Individual assembly with disconnect element, fuse plug, component connector, and feed-through connector
Downloads
Phoenix 3007055 CAD data International.dxfPhoenix 3007055 CAD data International.pdfPhoenix 3007055 CAD data International.stpPhoenix 3007055 Manufacturers declaration English.pdfPhoenix 3007055 Manufacturers declaration International.pdfPhoenix 3007055 Safety note English.pdfPhoenix 3007055 Tender Text English.zip
