Code: 40584

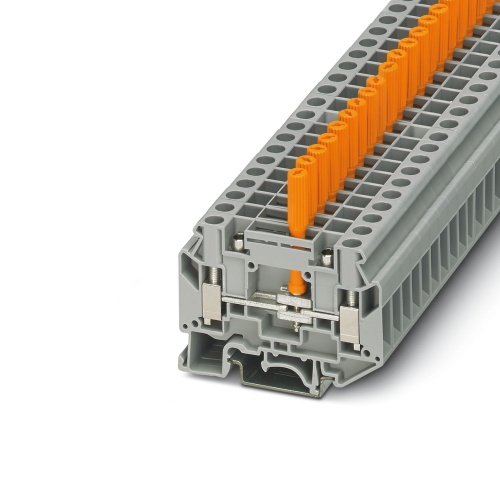

Phoenix Contact 3072804 Disconnect terminal block UK 6-TK-P
Normally In Stock
UK 6-TK-P Phoenix Contact 3072804 UK 6-TK-P Disconnect Terminal Block, with knurled screw, for operating the disconnect slide by hand, connection method: Screw connection
Condition: New
Usually Ships Same day or Next Day$11.56
Sale Price
$9.63
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 3072804 For manual operation of the disconnect slide, the terminal block with a knurled screw must be disconnected, suitable for applications at nominal voltages of 500 V and currents up to 41 A. The connection method is a screw connection with one level, allowing for rated cross sections ranging from 0.5 mm2 to 10 mm2, and it can be mounted using the NS 35/7.5, NS 35/15, or NS 32 types.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
8.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Disconnect
Removable Disconnect
Terminal Block Amperage
41 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Disconnect Terminal Block
Features
Convenient separation of circuits with a lever-type disconnect knife, isolating plug, or rotary contact
User-friendly current measurement via the testing option on either side of the disconnect point
Safe operation, as the disconnect lever is latched in the end positions
Clear identification of the disconnect point with color marking
Individual assembly with disconnect element, fuse plug, component connector, and feed-through connector
