Code: 40582

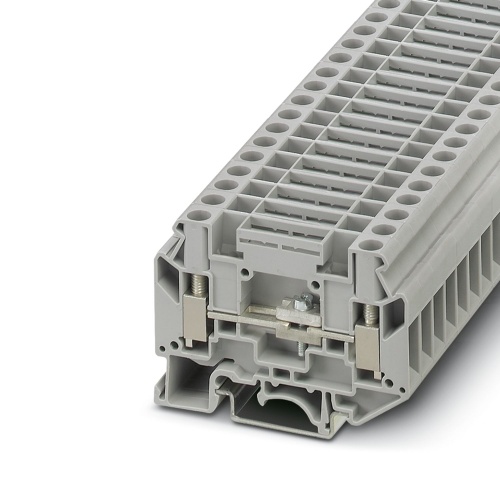

Phoenix Contact 3072803 Disconnect terminal block UK 6-T
Normally In Stock
UK 6-T Phoenix Contact 3072803 UK 6-T Disconnect Terminal Block, connection method: Screw connection, cross section
Condition: New
Usually Ships Same day or Next Day$10.70
Sale Price
$8.92
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 3072803 The terminal block has a nominal voltage of 500 V and a maximum current rating of 41 A, with connections made via screw terminals that are levelled to one position only. The rated cross-sectional area is 6 mm2, but can range from 0.5 mm2 to 10 mm2, and the mounting type is specified as NS 35/7,5, NS 35/15, or NS 32, with a color finish of gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
8.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Disconnect
Removable Disconnect
Terminal Block Amperage
41 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Disconnect Terminal Block
Features
Convenient separation of circuits with a lever-type disconnect knife, isolating plug, or rotary contact
User-friendly current measurement via the testing option on either side of the disconnect point
Safe operation, as the disconnect lever is latched in the end positions
Clear identification of the disconnect point with color marking
Individual assembly with disconnect element, fuse plug, component connector, and feed-through connector
