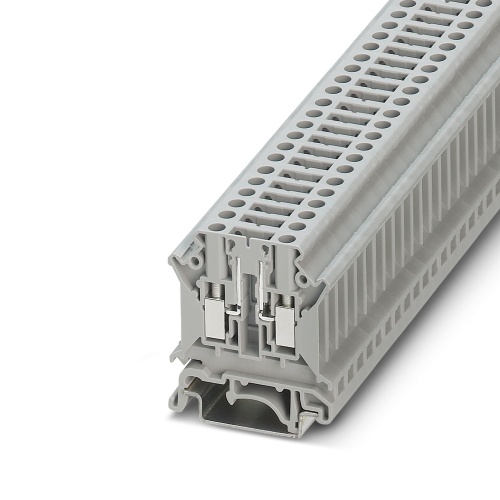

Phoenix Contact 3000604 Disconnect terminal block UK 5 N-TG
Normally In Stock
Code: 40581
UK 5 N-TG Phoenix Contact 3000604 UK 5 N-TG Disconnect Terminal Block, nom. voltage: 500 V, nominal current: 16 A
Condition: New
Usually Ships Same day or Next Day$7.80
Sale Price
$6.50
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3000604 The terminal block is configured to supply a nominal voltage of 500 V and a maximum current of 16 A, with connections made using a screw method. The rated cross-sectional area is 4 mm2, but can range from 0.5 mm2 to 6 mm2. Mounting options include NS 35/7.5, NS 35/15, and NS 32, with the block itself colored gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Disconnect
Removable Disconnect
Terminal Block Amperage
16 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Disconnect Terminal Block
Features
Convenient separation of circuits with a lever-type disconnect knife, isolating plug, or rotary contact
User-friendly current measurement via the testing option on either side of the disconnect point
Safe operation, as the disconnect lever is latched in the end positions
Clear identification of the disconnect point with color marking
Individual assembly with disconnect element, fuse plug, component connector, and feed-through connector
Downloads
Phoenix 3000604 CAD data International.dxfPhoenix 3000604 CAD data International.pdfPhoenix 3000604 CAD data International.stpPhoenix 3000604 Manufacturers declaration English.pdfPhoenix 3000604 Manufacturers declaration International.pdfPhoenix 3000604 Safety note English.pdfPhoenix 3000604 Tender Text English.zip
