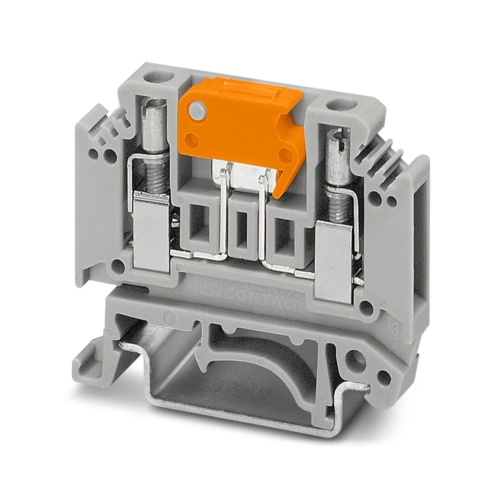

Phoenix Contact 3104013 Knife-disconnect terminal block MTK-P/P
Normally In Stock
Code: 40572
MTK-P/P Phoenix Contact 3104013 MTK-P/P Knife disconnect Terminal Block, With test socket screws for insertion of test plugs, nom. voltage: 400 V, nominal current: 16 A
Condition: New
Usually Ships Same day or Next Day$11.47
Sale Price
$9.56
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3104013 The terminal block features a knife-disconnect design with test socket screws for easy insertion of test plugs and can handle a maximum voltage of 400V and a maximum current of 16A. It uses screw connections for attachment and has a rated cross-sectional area of 2.5mm², allowing for cross-sectional areas ranging from 0.2mm² to 4mm². The block is mounted using various standards including NS 35/7.5, NS 35/15, and NS 32, and it comes in a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
24
Terminal Block Amperage
16 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Disconnect Terminal Block
Sub Component
Knife Disconnect Terminal Block
Features
High current carrying capacity of up to 16 A
Space-saving design
Downloads
Phoenix 3104013 CAD data International.dxfPhoenix 3104013 CAD data International.pdfPhoenix 3104013 CAD data International.stpPhoenix 3104013 Manufacturers declaration English.pdfPhoenix 3104013 Manufacturers declaration International-2.pdfPhoenix 3104013 Manufacturers declaration International.pdfPhoenix 3104013 Product Information English.pdfPhoenix 3104013 Safety note English.pdfPhoenix 3104013 Tender Text English.zip
