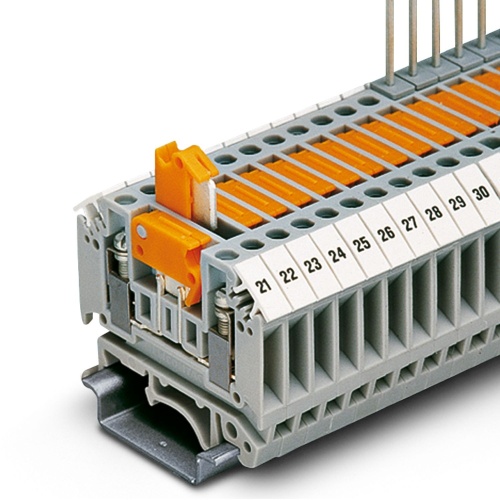

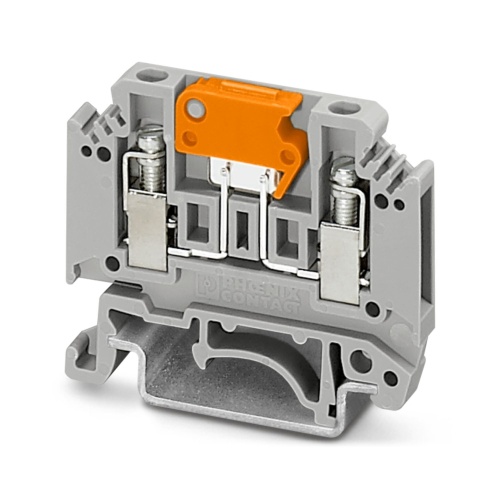

Phoenix Contact 3101016 Knife-disconnect terminal block MTK
Normally In Stock
Code: 40569
MTK Phoenix Contact 3101016 MTK Knife disconnect Terminal Block, nom. voltage: 400 V, nominal current: 16 A
Condition: New
Usually Ships Same day or Next Day$10.31
Sale Price
$8.59
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3101016 The knife-disconnect terminal block features a nominal voltage of 400V and a maximum current rating of 16A, with screw connection as the method of attachment. The rated cross-sectional area is 2.5mm², but it can accommodate cross-sections ranging from 0.2mm² to 4mm², depending on the specific use case. It is available in various mounting options, including NS35/7.5 and NS35/15, with a standard color of gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
24
Terminal Block Amperage
16 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Disconnect Terminal Block
Sub Component
Knife Disconnect Terminal Block
Features
Space-saving design
High current carrying capacity of up to 16 A
Downloads
Phoenix 3101016 CAD data International.dxfPhoenix 3101016 CAD data International.pdfPhoenix 3101016 CAD data International.stpPhoenix 3101016 Manufacturers declaration English.pdfPhoenix 3101016 Manufacturers declaration International-2.pdfPhoenix 3101016 Manufacturers declaration International.pdfPhoenix 3101016 Safety note English.pdfPhoenix 3101016 Tender Text English.zip
