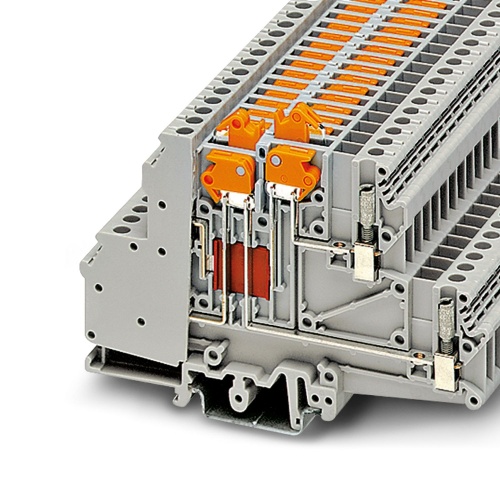

Phoenix Contact 3024478 Knife-disconnect terminal block UDMTKB 5-P/P
Normally In Stock
Code: 40568
UDMTKB 5-P/P Phoenix Contact 3024478 UDMTKB 5-P/P Knife disconnect Terminal Block, With test socket screws for insertion of test plugs, nom. voltage: 400 V, nominal current: 10 A
Condition: New
Usually ships within 7-14 days. Call for ship time.$32.40
Sale Price
$27.00
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3024478 A knife-disconnect terminal block features a test socket with screws for easy insertion of test plugs, rated for 400 V and 10 A nominal current. Connections are made through screw connections with cross sections ranging from 0.2 mm² to 4 mm², suitable for both the first and second levels of connection. The mounting options include NS 35/7.5, NS 35/15, and NS 32, while the terminal block itself is a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
24
Terminal Block Amperage
10 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Disconnect Terminal Block
Sub Component
Knife Disconnect Terminal Block
Features
Closed housing of double-level terminal blocks
Space-saving design just 6.2 mm wide
User-friendly disconnect knife operation
Downloads
Phoenix 3024478 CAD data International.dxfPhoenix 3024478 CAD data International.pdfPhoenix 3024478 CAD data International.stpPhoenix 3024478 Manufacturers declaration English.pdfPhoenix 3024478 Manufacturers declaration International-2.pdfPhoenix 3024478 Manufacturers declaration International.pdfPhoenix 3024478 Safety note English.pdfPhoenix 3024478 Tender Text English.zip
