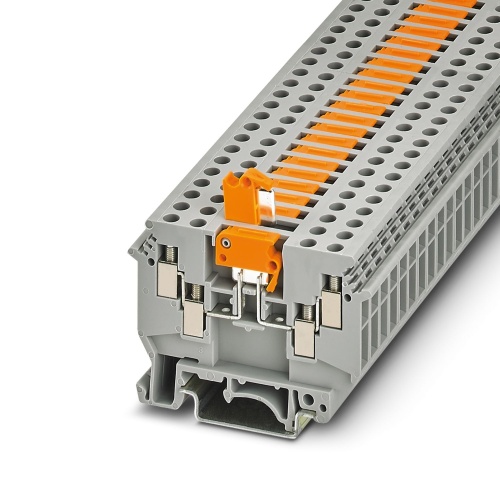

Phoenix Contact 2776044 Knife-disconnect terminal block UDK 4-MTK-P/P MIT SPERRE
Normally In Stock
Code: 40566
UDK 4-MTK-P/P MIT SPERRE Phoenix Contact 2776044 UDK 4-MTK-P/P MIT SPERR Knife disconnect Terminal Block, With test socket screws for insertion of test plugs, nom. voltage: 630 V, nominal current: 16 A,
Condition: New
Usually ships within 7-14 days. Call for ship time.$13.81
Sale Price
$11.51
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2776044 The terminal block features a knife-disconnect mechanism and includes test socket screws for inserting test plugs, with a maximum voltage rating of 630V and a maximum current capacity of 16A, arranged in one level. The connection method is via screw threads, allowing for rated cross sections ranging from 0.2mm² to 6mm², while mounting options include NS 35/7.5, NS 35/15, and NS 32, with a standard color of gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Disconnect
Knife Disconnect
Terminal Block Voltage Rating
630 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Amperage
16 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Disconnect Terminal Block
Sub Component
Knife Disconnect Terminal Block
Features
Space-saving design just 6.2 mm wide
Closed housing of double-level terminal blocks
User-friendly disconnect knife operation
Downloads
Phoenix 2776044 CAD data International.dxfPhoenix 2776044 CAD data International.pdfPhoenix 2776044 CAD data International.stpPhoenix 2776044 Manufacturers declaration English.pdfPhoenix 2776044 Manufacturers declaration International-2.pdfPhoenix 2776044 Manufacturers declaration International-3.pdfPhoenix 2776044 Manufacturers declaration International.pdfPhoenix 2776044 Safety note English.pdfPhoenix 2776044 Tender Text English.zip
