Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

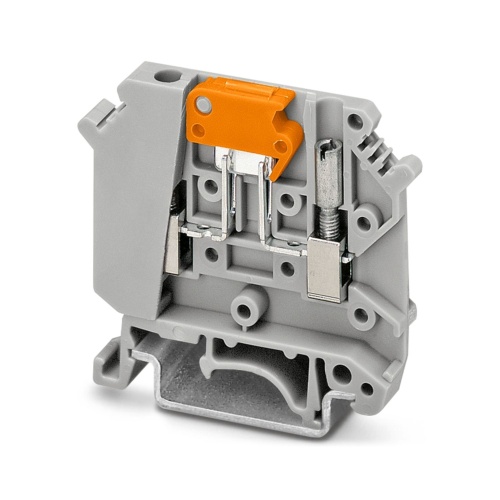

Phoenix Contact 3029538 Knife-disconnect terminal block UK 5-MTK-P/P OG
Normally In Stock
Code: 40554
UK 5-MTK-P/P OG Phoenix Contact 3029538 UK 5-MTK-P/P OG Knife disconnect Terminal Block, With test socket screws for insertion of test plugs, nom. voltage: 500 V, nominal current: 16 A
Condition: New
Usually Ships Same day or Next Day$15.41
Sale Price
$12.84
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3029538 The terminal block features a knife-disconnect design and includes test socket screws for inserting test plugs. It operates at 500 V nominal voltage with a maximum current rating of 16 A. The connection method is screw-based and has a rated cross-sectional area of 2.5 mm², spanning from 0.2 mm² to 6 mm². The block is mounted using various standards including NS 32, NS 35/7.5, and NS 35/15, and has an orange coloration.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
24
Terminal Block Component Color
Orange
Terminal Block Amperage
16 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Disconnect Terminal Block
Sub Component
Knife Disconnect Terminal Block
Features
Convenient separation of circuits with a lever-type disconnect knife, isolating plug, or rotary contact
User-friendly current measurement via the testing option on either side of the disconnect point
Safe operation, as the disconnect lever is latched in the end positions
Clear identification of the disconnect point with color marking
Individual assembly with disconnect element, fuse plug, component connector, and feed-through connector
Downloads
Phoenix 3029538 CAD data International.dxfPhoenix 3029538 CAD data International.pdfPhoenix 3029538 CAD data International.stpPhoenix 3029538 Manufacturers declaration English.pdfPhoenix 3029538 Manufacturers declaration International-2.pdfPhoenix 3029538 Manufacturers declaration International.pdfPhoenix 3029538 Safety note English.pdfPhoenix 3029538 Tender Text English.zip
