Code: 40553

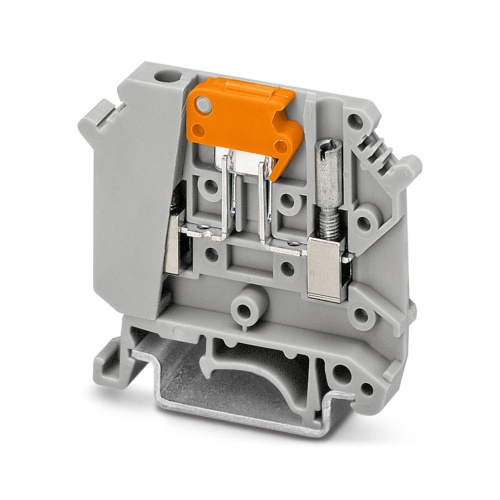

Phoenix Contact 3048292 Knife-disconnect terminal block UK 5-MTK-P/P RD
Normally In Stock
UK 5-MTK-P/P RD Phoenix Contact 3048292 UK 5-MTK-P/P RD Knife disconnect Terminal Block, With test socket screws for insertion of test plugs, nom. voltage: 500 V, nominal current: 16 A
Condition: New
Usually Ships Same day or Next Day$12.68
Sale Price
$10.57
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

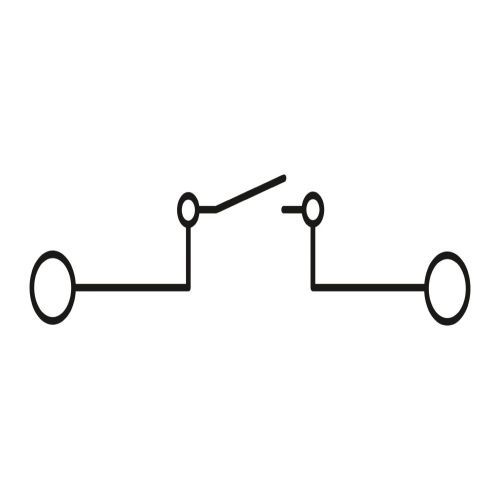

Phoenix Contact 3048292 The knife-disconnect terminal block features a test socket for inserting test plugs and can handle a nominal voltage of 500 V and an nominal current of 16 A. The connection method is screw-based, with rated cross-sections ranging from 0.2 mm² to 6 mm². It comes in different mounting options including NS 32, NS 35/7.5, and NS 35/15, and has a distinct red color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
24
Terminal Block Component Color
Red
Terminal Block Amperage
16 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Disconnect Terminal Block
Sub Component
Knife Disconnect Terminal Block
Features
Convenient separation of circuits with a lever-type disconnect knife, isolating plug, or rotary contact
User-friendly current measurement via the testing option on either side of the disconnect point
Safe operation, as the disconnect lever is latched in the end positions
Clear identification of the disconnect point with color marking
Individual assembly with disconnect element, fuse plug, component connector, and feed-through connector
Downloads
Phoenix 3048292 CAD data International.dxfPhoenix 3048292 CAD data International.pdfPhoenix 3048292 CAD data International.stpPhoenix 3048292 Manufacturers declaration English.pdfPhoenix 3048292 Manufacturers declaration International-2.pdfPhoenix 3048292 Manufacturers declaration International.pdfPhoenix 3048292 Safety note English.pdfPhoenix 3048292 Tender Text English.zip
