Code: 40552

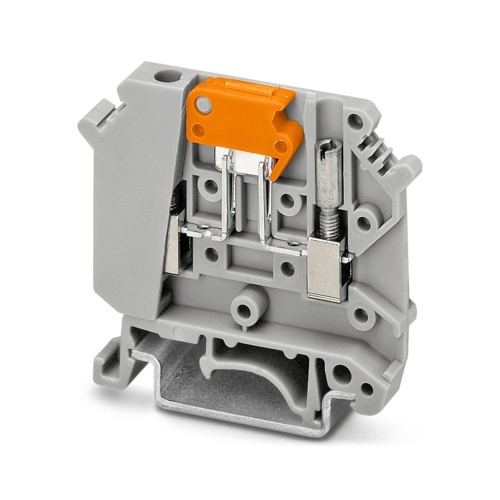

Phoenix Contact 3004058 Knife-disconnect terminal block UK 5-MTK-P/P BU
Normally In Stock
UK 5-MTK-P/P BU Phoenix Contact 3004058 UK 5-MTK-P/P BU Knife disconnect Terminal Block, With test socket screws for insertion of test plugs, nom. voltage: 500 V, nominal current: 20 A
Condition: New
Usually Ships Same day or Next Day$13.63
Sale Price
$11.36
MUST BUY IN PACKS OF 40
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3004058 The terminal block features a knife-disconnect design with test socket screws for easy plug insertion, capable of handling 500V and 16A currents. It has multiple connection levels, including a single level configuration, and can be secured using screw connections. The rated cross-sectional area ranges from 2.5mm² to 6mm², while mounting options include NS35/7.5, NS35/15, and NS32, with a standard color specification of blue.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Blue
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
24
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Disconnect Terminal Block
Sub Component
Knife Disconnect Terminal Block
Features
High current carrying capacity of up to 16 A
Space-saving design
Downloads
Phoenix 3004058 CAD data International.dxfPhoenix 3004058 CAD data International.pdfPhoenix 3004058 CAD data International.stpPhoenix 3004058 Manufacturers declaration English.pdfPhoenix 3004058 Manufacturers declaration International-2.pdfPhoenix 3004058 Manufacturers declaration International.pdfPhoenix 3004058 Safety note English.pdfPhoenix 3004058 Tender Text English.zip
