Code: 40551
Phoenix Contact 3004032 Knife-disconnect terminal block UK 5-MTK-P/P
Normally In Stock
UK 5-MTK-P/P Phoenix Contact 3004032 UK 5-MTK-P/P Knife disconnect Terminal Block, With test socket screws for insertion of test plugs, nom. voltage: 500 V, nominal current: 20 A
Condition: New
Usually Ships Same day or Next Day$13.63
Sale Price
$11.36
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

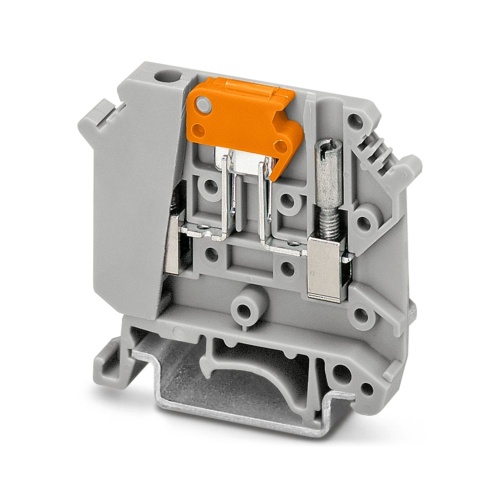

Phoenix Contact 3004032 The knife-disconnect terminal block features a test socket for inserting test plugs and is designed to handle 500V and 16A of nominal voltage. It has a single level connection method secured by screws, with rated cross sections ranging from 0.2 mm2 to 6 mm2. The unit is mounted using options NS 35/7.5, NS 35/15, or NS 32 and comes in gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Disconnect Terminal Block
Sub Component
Knife Disconnect Terminal Block
Features
Space-saving design
High current carrying capacity of up to 16 A
Downloads
Phoenix 3004032 CAD data International.dxfPhoenix 3004032 CAD data International.pdfPhoenix 3004032 CAD data International.stpPhoenix 3004032 Manufacturers declaration English.pdfPhoenix 3004032 Manufacturers declaration International-2.pdfPhoenix 3004032 Manufacturers declaration International.pdfPhoenix 3004032 Safety note English.pdfPhoenix 3004032 Tender Text English.zip
