Code: 40547

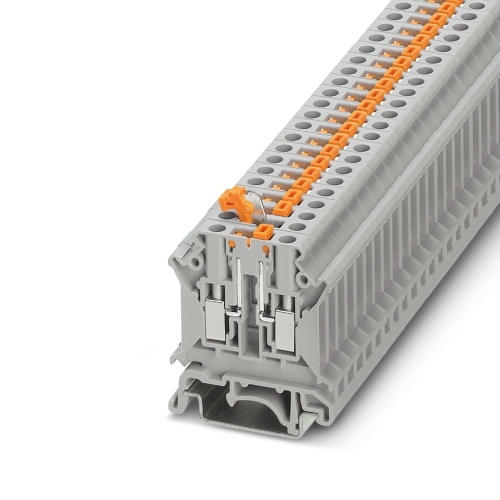

Phoenix Contact 3000563 Knife-disconnect terminal block UK 5 N-MT
Normally In Stock
UK 5 N-MT Phoenix Contact 3000563 UK 5 N-MT Knife disconnect Terminal Block, nom. voltage: 500 V, nominal current: 16 A
Condition: New
Usually Ships Same day or Next Day$7.19
Sale Price
$5.99
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3000563 The knife-disconnect terminal block features a 500 V nominal voltage and a maximum current of 16 A, with a screw connection method. The cross-sectional area can range from 0.2 mm² to 6 mm², while the rated cross section is 1.5 mm². It comes in various mounting options including NS 35/7.5, NS 35/15, and NS 32, and has a gray coloration.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Amperage
16 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Disconnect Terminal Block
Sub Component
Knife Disconnect Terminal Block
Features

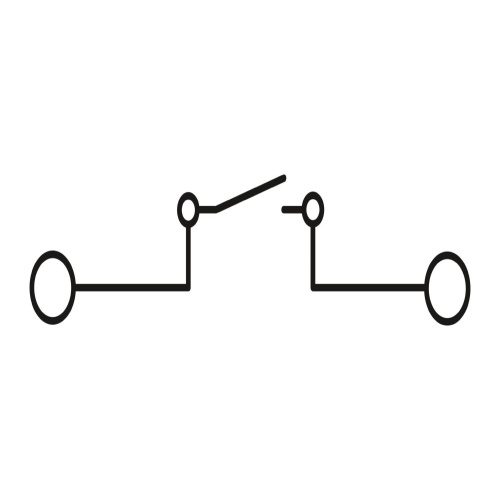

Convenient separation of circuits with a lever-type disconnect knife, isolating plug, or rotary contact
User-friendly current measurement via the testing option on either side of the disconnect point
Safe operation, as the disconnect lever is latched in the end positions
Clear identification of the disconnect point with color marking
Individual assembly with disconnect element, fuse plug, component connector, and feed-through connector
Downloads
Phoenix 3000563 CAD data International.dxfPhoenix 3000563 CAD data International.pdfPhoenix 3000563 CAD data International.stpPhoenix 3000563 Manufacturers declaration English.pdfPhoenix 3000563 Manufacturers declaration International-2.pdfPhoenix 3000563 Manufacturers declaration International.pdfPhoenix 3000563 Safety note English.pdfPhoenix 3000563 Tender Text English.zip
