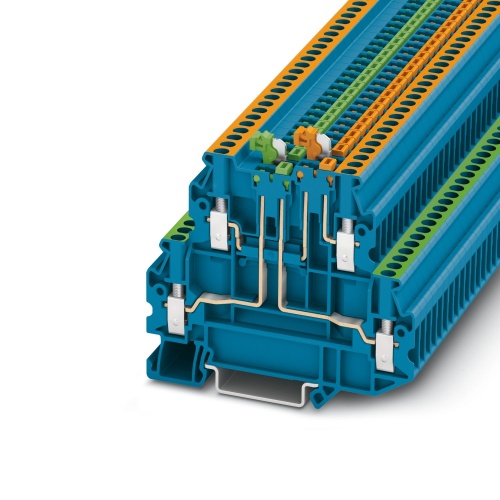

Phoenix Contact 3044680 Knife-disconnect terminal block UTT 2,5-2MT BU
Normally In Stock
Code: 40546
UTT 2,5-2MT BU Phoenix Contact 3044680 UTT 2,5-2MT BU Knife disconnect Terminal Block, nom. voltage: 400 V, nominal current: 16 A
Condition: New
Usually Ships Same day or Next Day$30.77
Sale Price
$25.64
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3044680 The terminal block is a knife-disconnect type with a nominal voltage of 400 V and a maximum current capacity of 16 A. It features screw connections for secure attachments and comes in various rated cross-sections ranging from 0.14 mm2 to 4 mm2, also utilizing screw connections. The terminal block can be mounted using the NS 35/7,5 or NS 35/15 mounting types, and it is typically colored blue.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Blue
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Amperage
16 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Disconnect Terminal Block
Sub Component
Knife Disconnect Terminal Block
Features
For a clear overview, each terminal point supports large-surface labeling
Convenient separation of circuits, thanks to lever-type disconnect knife
Downloads
Phoenix 3044680 CAD data International.dxfPhoenix 3044680 CAD data International.pdfPhoenix 3044680 CAD data International.stpPhoenix 3044680 Manufacturers declaration English.pdfPhoenix 3044680 Manufacturers declaration International-2.pdfPhoenix 3044680 Manufacturers declaration International-3.pdfPhoenix 3044680 Manufacturers declaration International-4.pdfPhoenix 3044680 Manufacturers declaration International.pdfPhoenix 3044680 Safety note English.pdfPhoenix 3044680 Tender Text English.zip
