Code: 40542

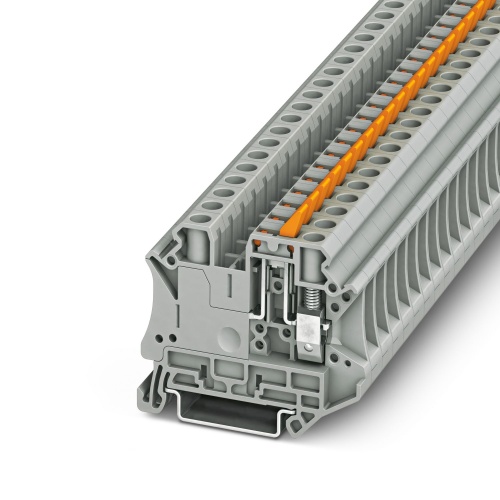

Phoenix Contact 3046147 Knife-disconnect terminal block UT 6-MTL P/P
Normally In Stock
UT 6-MTL P/P Phoenix Contact 3046147 UT 6-MTL P/P Knife disconnect Terminal Block, with actuation bracket and test socket screws for insertion of test plugs, nom. voltage: 500 V, nominal current: 20 A
Condition: New
Usually Ships Same day or Next Day$5.90
Sale Price
$4.92
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3046147 The terminal block features a knife-disconnect mechanism with an actuation bracket and test sockets for easy testing, operating at 500V and 20A, connected via screws, with rated cross sections ranging from 0.2-10mm² and compatible mounting options including NS35/7.5 and NS35/15, finished in a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Width
8.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
8
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Disconnect Terminal Block
Sub Component
Knife Disconnect Terminal Block
Features
Compact design and high current carrying capacity of 20 A
Double bridge shaft enables individual potential distribution and supply
Downloads
Phoenix 3046147 CAD data International.dxfPhoenix 3046147 CAD data International.pdfPhoenix 3046147 CAD data International.stpPhoenix 3046147 Manufacturers declaration English.pdfPhoenix 3046147 Manufacturers declaration International-2.pdfPhoenix 3046147 Manufacturers declaration International.pdfPhoenix 3046147 Safety note English.pdfPhoenix 3046147 Tender Text English.zip
