Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 40541

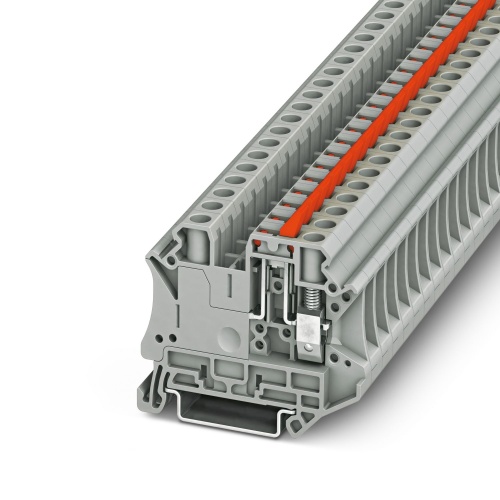

Phoenix Contact 3046153 Knife-disconnect terminal block UT 6-MTL KNIFE-RD
Normally In Stock
UT 6-MTL KNIFE-RD Phoenix Contact 3046153 UT 6-MTL KNIFE-RD Knife disconnect Terminal Block, with actuation latch, nom. voltage: 500 V, nominal current: 20 A, connection method: Screw connection
Condition: New
Usually Ships Same day or Next Day$6.01
Sale Price
$5.01
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3046153 The terminal block features a knife-disconnect mechanism with an actuation latch, designed to operate within a nominal voltage of 500 V and a maximum current capacity of 20 A. The connection method is via screw attachment, while the rated cross-sectional area ranges from 0.2 mm² to 10 mm². It can be mounted on the NS 35/7.5 or NS 35/15 series, with an attractive gray coloration.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Width
8.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
8
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Disconnect Terminal Block
Sub Component
Knife Disconnect Terminal Block
Features
Compact design and high current carrying capacity of 20 A
Double bridge shaft enables individual potential distribution and supply
Downloads
Phoenix 3046153 CAD data International.dxfPhoenix 3046153 CAD data International.pdfPhoenix 3046153 CAD data International.stpPhoenix 3046153 Manufacturers declaration English.pdfPhoenix 3046153 Manufacturers declaration International-2.pdfPhoenix 3046153 Manufacturers declaration International.pdfPhoenix 3046153 Safety note English.pdfPhoenix 3046153 Tender Text English.zip
