Code: 40538

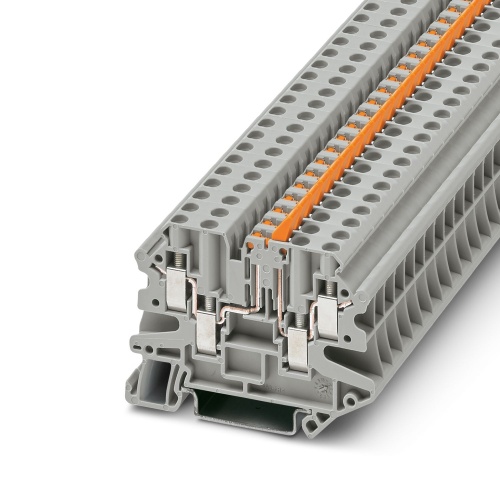

Phoenix Contact 1051570 Knife-disconnect terminal block UT 4-QUATTRO-MTL
Normally In Stock
UT 4-QUATTRO-MTL Phoenix Contact 1051570 UT 4-QUATTRO-MTL Knife disconnect Terminal Block, nom. voltage: 500 V, nominal current: 20 A, connection method: Screw connection, number of connections: 4, cross section
Condition: New
Usually Ships Same day or Next Day$6.13
Sale Price
$5.11
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1051570 The knife-disconnect terminal block has a nominal voltage of 500V and a maximum current capacity of 20A, featuring a screw connection method with a minimum cross-sectional area of 0.14mm2 and a maximum of 6mm2, suitable for mounting on NS35/7.5 or NS35/15 components, and comes in gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Disconnect Terminal Block
Sub Component
Knife Disconnect Terminal Block
Features
Tested for railway applications
Compact design and high current carrying capacity of 20 A
