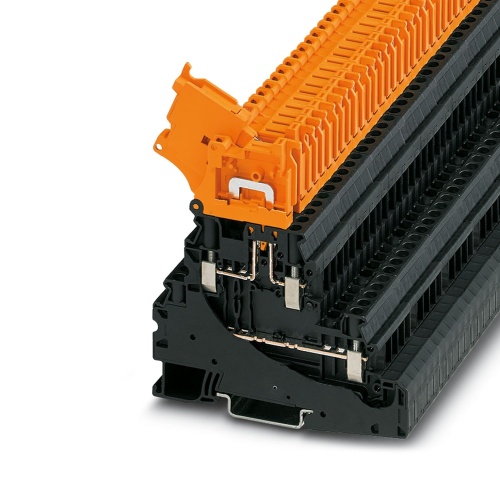

Phoenix Contact 3214326 Lever-type disconnect terminal block UT 4-L/HEDI
Normally In Stock
Code: 40537
UT 4-L/HEDI Phoenix Contact 3214326 UT 4-L/HEDI Lever-type disconnect Terminal Block, nom. voltage: 500 V, nominal current: 28 A, connection method: Screw connection, cross section:
Condition: New
Usually Ships Same day or Next Day$9.53
Sale Price
$7.94
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3214326 A lever-type disconnect terminal block has a nominal voltage of 500 V and a maximum current rating of 28 A, with connection methods including screw connections. The rated cross-sectional areas range from 0.14 mm2 to 6 mm2, with the smallest being 1 mm2 and up to 4 mm2. These blocks are mounted using either NS35/7.5 or NS35/15 standards and have a color scheme of black/orange.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Terminal Block Component Color
Black/Orange
Terminal Block Disconnect
Lever-Type Disconnect
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
28 Amp
Sub Component
Disconnect Terminal Block
Sub Component
Lever-Type Disconnect Terminal Block
Features
Convenient separation of circuits with a lever-type disconnect knife, isolating plug, or rotary contact
User-friendly current measurement via the testing option on either side of the disconnect point
Safe operation, as the disconnect lever is latched in the end positions
Clear identification of the disconnect point with color marking
Individual assembly with disconnect element, fuse plug, component connector, and feed-through connector
Downloads
Phoenix 3214326 CAD data International.dxfPhoenix 3214326 CAD data International.pdfPhoenix 3214326 CAD data International.stpPhoenix 3214326 Certification English.pdfPhoenix 3214326 Certification International.pdfPhoenix 3214326 Manufacturers declaration English.pdfPhoenix 3214326 Manufacturers declaration International-2.pdfPhoenix 3214326 Manufacturers declaration International.pdfPhoenix 3214326 Safety note English.pdfPhoenix 3214326 Tender Text English.zipPhoenix 3214326 User instructions for the Ex Area International.pdf
