Code: 40536

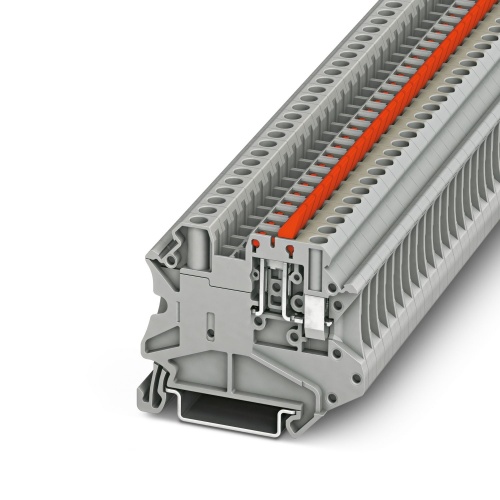

Phoenix Contact 3046154 Knife-disconnect terminal block UT 4-MTL-P/P KNIFE-RD
Normally In Stock
UT 4-MTL-P/P KNIFE-RD Phoenix Contact 3046154 UT 4-MTL-P/P KNIFE-RD Knife disconnect Terminal Block, with actuation latch, red disconnect knife, and test socket screws for insertion of test plugs, nom. voltage: 500 V
Condition: New
Usually Ships Same day or Next Day$6.95
Sale Price
$5.79
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3046154 The terminal block features a knife-disconnect mechanism with an actuation latch and a red disconnect knife for secure connections. It has a test socket for inserting test plugs and is designed to handle nominal voltages of 500 V and currents of up to 20 A. Connections are made via screw fastening, with rated cross sections ranging from 0.14 mm2 to 6 mm2. The terminal block comes in two mounting options (NS 35/7.5 and NS 35/15) and has a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Disconnect Terminal Block
Sub Component
Knife Disconnect Terminal Block
Features
Compact design and high current carrying capacity of 20 A
Downloads
Phoenix 3046154 CAD data International.dxfPhoenix 3046154 CAD data International.pdfPhoenix 3046154 CAD data International.stpPhoenix 3046154 Manufacturers declaration English.pdfPhoenix 3046154 Manufacturers declaration International-2.pdfPhoenix 3046154 Manufacturers declaration International-3.pdfPhoenix 3046154 Manufacturers declaration International.pdfPhoenix 3046154 Safety note English.pdfPhoenix 3046154 Tender Text English.zip
