Code: 40535
Phoenix Contact 3046150 Knife-disconnect terminal block UT 4-MTL-P/P KNIFE-WH
Normally In Stock
UT 4-MTL-P/P KNIFE-WH Phoenix Contact 3046150 UT 4-MTL-P/P KNIFE-WH Knife disconnect Terminal Block, with actuation latch, white disconnect knife, and test socket screws for insertion of test plugs, nom. voltage: 500 V,
Condition: New
Usually ships within 7-14 days. Call for ship time.$5.94
Sale Price
$4.95
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

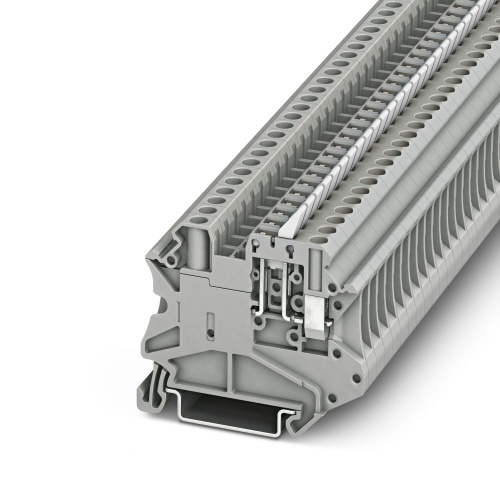

Phoenix Contact 3046150 A knife-disconnect terminal block with an actuation latch features a white disconnect knife and test socket screws for inserting test plugs, suitable for 500V nominal voltage and 20A nominal current connections. The connection method is screw-based, with rated cross-sections ranging from 0.14mm2 to 6mm2. This terminal block can be mounted using NS35/7.5 or NS35/15 options and has a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Disconnect Terminal Block
Sub Component
Knife Disconnect Terminal Block
Features
Compact design and high current carrying capacity of 20 A
Downloads
Phoenix 3046150 CAD data International.dxfPhoenix 3046150 CAD data International.pdfPhoenix 3046150 CAD data International.stpPhoenix 3046150 Manufacturers declaration English.pdfPhoenix 3046150 Manufacturers declaration International-2.pdfPhoenix 3046150 Manufacturers declaration International-3.pdfPhoenix 3046150 Manufacturers declaration International.pdfPhoenix 3046150 Safety note English.pdfPhoenix 3046150 Tender Text English.zip
