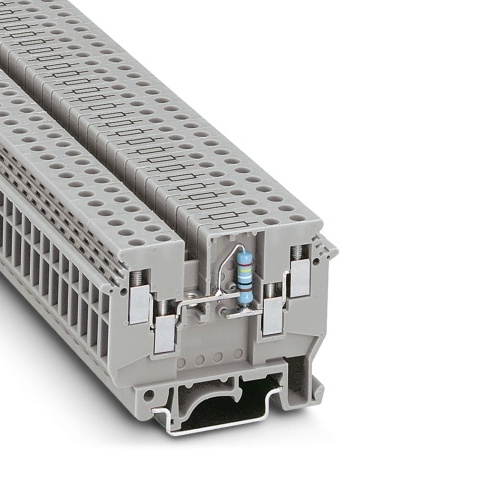

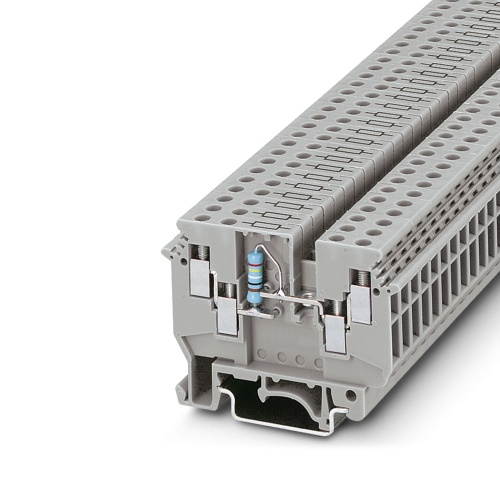

Phoenix Contact 2776032 Component terminal block UDK 4-DUR 5K1
Normally In Stock
Code: 40524
UDK 4-DUR 5K1 Phoenix Contact 2776032 Component Terminal Block - UDK 4-DUR 5K1 with double connection on both sides, with built-in resistor 5.1 kΩ, ±0.1%, 0.6 W
Condition: New
Usually Ships Same day or Next Day$15.01
Sale Price
$12.51
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2776032 The component terminal block has a nominal voltage of 630 V and a maximum current rating of 32 A, with four screw connections available. The rated cross-sectional area ranges from 0.2 mm² to 6 mm² for a single level mounting type classified as NS 35/7,5, NS 35/15, or NS 32, and it comes in gray color.
Specifications
Terminal Block Voltage Rating
630 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Component Terminal Block
Features
The four-conductor connection enables user-friendly wiring
A voltage signal pick-off can be implemented in the measuring line using this terminal block, enabling the signal to be used as an analog signal for process computers
The constant circuits common in process automation transmit the measured values as a load-independent current of 0 ... 20 mA
The lower level is assigned to the measuring line while the upper level is used for voltage pick-off via the 5.1 kOhm resistor
