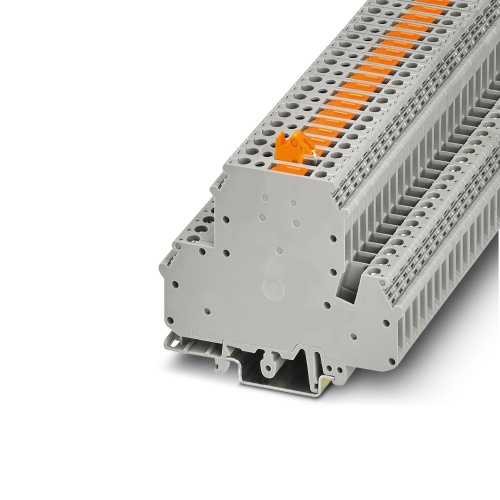

Phoenix Contact 2800486 Knife-disconnect terminal block UKK 5-MTK-P/P-DIO/U-OL
Normally In Stock
Code: 40517
UKK 5-MTK-P/P-DIO/U-OL Phoenix Contact 2800486 Knife disconnect Terminal Block - UKK 5-MTK-P/P-DIO/U-OL
Condition: New
Usually Ships Same day or Next Day$27.90
Sale Price
$23.25
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2800486 The terminal block features a knife-disconnect design and is used to carry current from a component, specifically the diode 1N4007, which has a reverse voltage rating of up to 1300V and can handle up to 0.5A of continuous current, with test sockets that use screws for easy plug insertion, operating at a nominal voltage of 400V and carrying a maximum current of 26A, featuring a single level connection method that uses screw connections and has rated cross sections ranging from 4mm2 to 4mm2, with an actual cross section size varying between 0.2mm2 and 4mm2, suitable for mounting on the NS35/7.5, NS35/15, or NS32 types, and is identified by a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
24
Terminal Block Width
6 mm
Terminal Block Amperage
26 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Disconnect Terminal Block
Sub Component
Knife Disconnect Terminal Block
Features
Convenient separation of circuits with a lever-type disconnect knife, isolating plug, or rotary contact
User-friendly current measurement via the testing option on either side of the disconnect point
Safe operation, as the disconnect lever is latched in the end positions
Clear identification of the disconnect point with color marking
Individual assembly with disconnect element, fuse plug, component connector, and feed-through connector
Downloads
Phoenix 2800486 CAD data International.dxfPhoenix 2800486 CAD data International.pdfPhoenix 2800486 CAD data International.stpPhoenix 2800486 Manufacturers declaration English.pdfPhoenix 2800486 Manufacturers declaration International.pdfPhoenix 2800486 Safety note English.pdfPhoenix 2800486 Tender Text English.zip
