Code: 398503

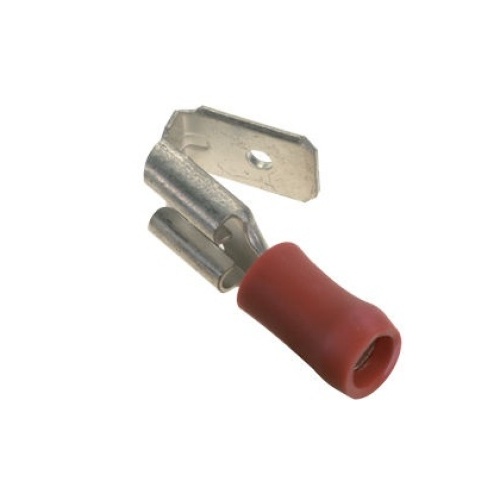

Panduit DV18-250P-LYY Pan-Term® Loose Piece Disconnect - Stud - 22-18 AWG
Normally In Stock
Panduit DV18-250P-LYY Piggyback Disconnect - 22-18 AWG - (MUST BUY IN PACKS OF 50)
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $350 FROM PANDUIT FOR PRODUCT TO SHIP
*NON-CANCELLABLE, NON-RETURNABLE*
$1.62
Sale Price
$1.35
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Panduit DV18-250P-LYY - The vibration resistant piggyback disconnect is made of brass and is tin-plated. It is barrel insulated in red vinyl housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.88" (22.4 mm) long and 0.29" (7.4 mm) wide. The disconnect has a standard barrel configuration and a sleeved barrel. It comes in bottles of 50.
Specifications
Terminal for Wire Gauge
22-18 AWG
Manufacturer
Panduit
Component
Piggyback Disconnect
Features
Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
Combination of female disconnect and male tab allows versatility in points of connection
Multiple connection points allow additional circuits to be added to existing equipment without expensive rework
Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
UL Flammability UL 94V-2/HB, maximum insulation temperature 194°F (90°C)
Rated up to 300 V. For Use With: CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
