Code: 398501
Panduit DV10-250M-L Pan-Term® Loose Piece Disconnect - Stud - 12-10 AWG
Normally In Stock
Panduit DV10-250M-L Male Disconnect Terminal - 12-10 AWG - (MUST BUY IN PACKS OF 50)
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $350 FROM PANDUIT FOR PRODUCT TO SHIP
*NON-CANCELLABLE, NON-RETURNABLE*
$1.03
Sale Price
$0.86
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

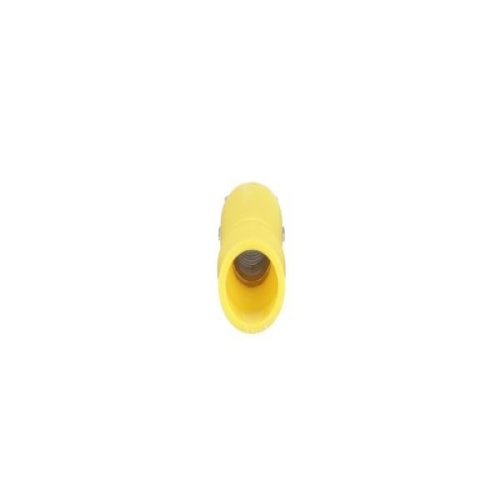

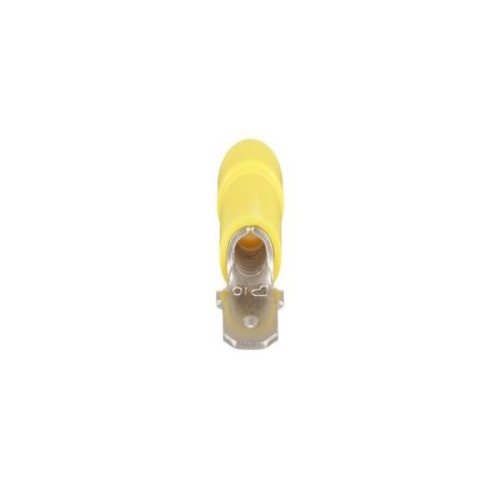

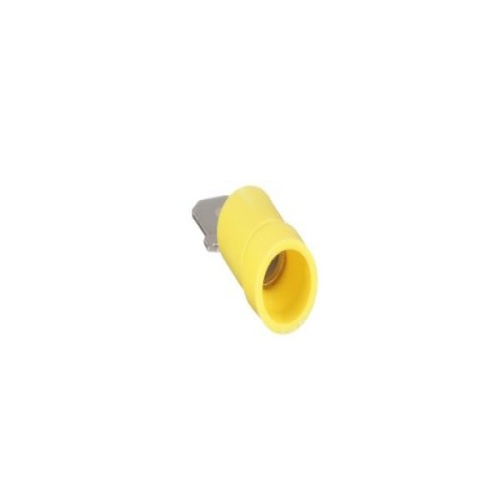

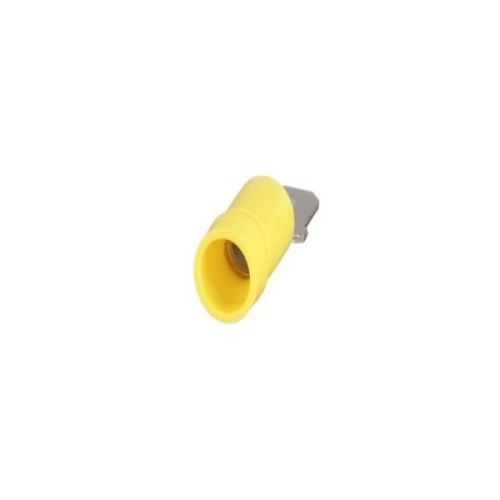

Panduit DV10-250M-L - The vibration resistant male disconnect is made of copper and is nickel-plated. It is barrel insulated in yellow vinyl housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 12-10 AWG (4.0-6.0 mm²). It is 0.98" (24.9 mm) long and 0.25" (6.4 mm) wide. The disconnect has a funnel entry barrel configuration and a brazed seam barrel. It comes in bottles of 50.
Specifications
Terminal for Wire Gauge
12-10 AWG
Component
Disconnect Terminal
Manufacturer
Panduit
Features
Male tab couples with (all 0.250 x 0.032) female disconnects
Insulation support helps to prevent wire damage in bending applications
Male tab can be inserted and removed from the female disconnect without the use of tools for lower installed cost
UL Flammability UL 94V-0, maximum insulation temperature 221°F (105°C)
Rated up to 600 V. For Use With: CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
