Code: 398498

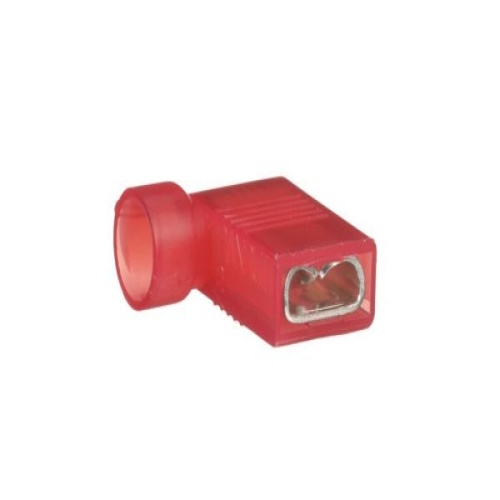

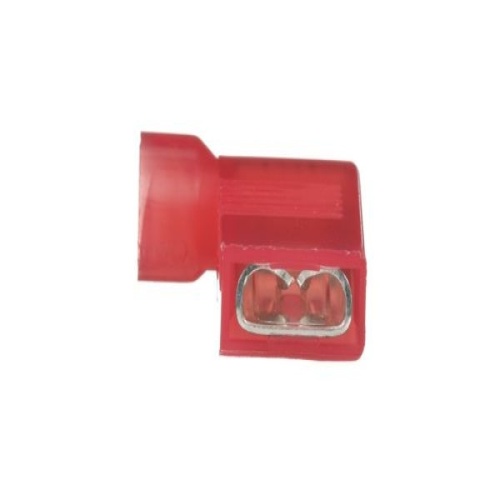

Panduit DNFR18-250FIB-L Pan-Term® Disconnect, Red, Vinyl, 18-22 AWG, 0.25" Tab, PK50
Normally In Stock
Panduit DNFR18-250FIB-L Female Disconnect Terminal - 1/4" Stud - 22-18 AWG - 90°
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $350 FROM PANDUIT FOR PRODUCT TO SHIP
*NON-CANCELLABLE, NON-RETURNABLE*
$1.75
Sale Price
$1.46
MUST BUY IN PACKS OF 250
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Panduit DNFR18-250FIB-L - The vibration resistant, right angle style female disconnect is made of brass and is tin-plated. It is fully insulated in red nylon. It has a tab size of 0.250 x 0.032 (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.58" (14.7 mm) long, 0.37" (9.4 mm) wide, and has a depth of 0.60" (15.2 mm). The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in bottles of 50. - DNFR18-250FIB-L replaces DNFR18-250FIB-C
Specifications
Terminal for Wire Gauge
22-18 AWG
Terminal Stud Size Opening
1/4"
Component
Disconnect Terminal
Manufacturer
Panduit
Features
Right angle design for use in limited space applications
Fully insulated design provides protection from electrical shorts
Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
UL Flammability UL 94V-2/HB, maximum insulation temperature 221°F (105°C)
UL and CSA rated up to 600 V per UL 310. For Use With: CT-300-1
