Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 398493
Panduit DNFR14-206B-L Pan-Term® Loose Piece Disconnect - Stud - 16-14 AWG
Normally In Stock
Panduit DNFR14-206B-L Female Disconnect Terminal - 16-14 AWG - 90° (MUST BUY IN PACKS OF 50)
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $350 FROM PANDUIT FOR PRODUCT TO SHIP
*NON-CANCELLABLE, NON-RETURNABLE*
$1.14
Sale Price
$0.95
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

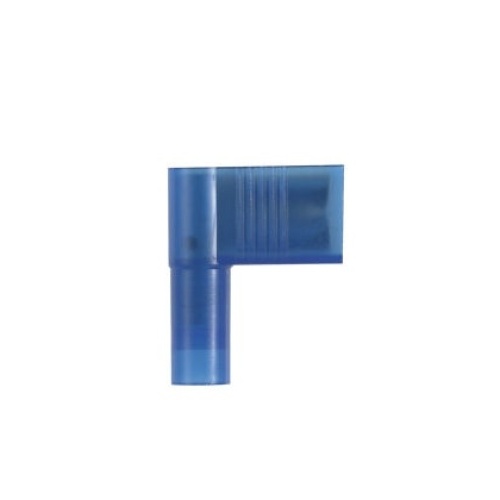

Panduit DNFR14-206B-L - The vibration resistant, right angle style female disconnect is made of brass and is tin-plated. It is insulated in blue nylon. It has a tab size of 0.205/0.187 x 0.020" (5.2/4.7 x 0.5 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.78" (19.8 mm) long, 0.36" (9.1 mm) wide, and has a depth of 0.63" (16.0 mm). The disconnect has a funnel entry configuration and a butted seam barrel. It comes in bottles of 50. - DNFR14-206B-L replaces DNFR14-206B-C
Specifications
Terminal for Wire Gauge
16-14 AWG
Component
Disconnect Terminal
Manufacturer
Panduit
Features
Right angle design for use in limited space applications
Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
Longer barrel design for use with Panduit standard disconnect tool
UL Flammability UL 94V-2/HB, maximum insulation temperature 221°F (105°C)
UL and CSA rated up to 600 V per UL 310. For Use With: CT-300-1
Downloads
Code: 398493
Panduit DNFR14-206B-L Pan-Term® Loose Piece Disconnect - Stud - 16-14 AWG
$1.14
Sale Price
$0.95
MUST BUY IN PACKS OF 50
