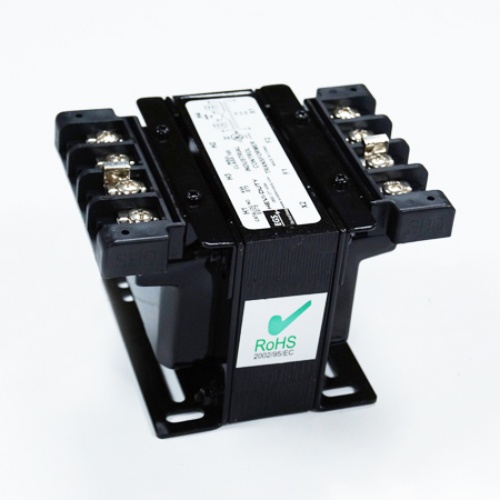

Sola E050E - Single Phase, 50 VA, Max In: 240 VAC Max Out: 24 VAC
Normally In Stock
Code: 389827
Sola E050E - Industrial Control Transformer - Max In: 240 VAC - Max Out: 24 VAC - 50 VA - IP20 - Single Phase - 7.36" L x 6.38" W x 5.56" H
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $350 FROM SOLA FOR PRODUCT TO SHIP
$82.81
Sale Price
$69.01
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Sola E050E - The SolaHD SBE Encapsulated industrial control transformers, ranging from 50 to 1000 VA at 50/60 Hz, are designed to excel in various industrial settings worldwide. These transformers feature interleaved copper windings for enhanced efficiency and reduced I2R losses. With a 55°C rise and a 105°C insulation system, they effectively manage heat while being epoxy encapsulated to shield against moisture, dirt, and contaminants. Complying with NEMA Standard ST-1 and ANSI C89.1 for load inrush capability, they ensure reliability. Additionally, the transformers boast integrally molded, flame-retardant terminal blocks for improved conductivity and come with a heavy gauge steel mounting plate, making them compatible with similar control transformers. The inclusion of secondary fuse holders (FB2X) for 13/32 x 1½ cartridges adds to their versatility, and there's even an option for factory-installed fuse holders (W, WA & WB). Backed by a ten-year limited warranty and
Specifications
Transformer Voltage Phases
Single Phase
Manufacturer
Sola
Transformer VoltAmp
50 VA
Transformer Secondary Voltage Out
24V
Transformer Primary Voltage In
240V
Transformer Primary Voltage In
120V
Component
Industrial Control Transformer
Features
50 - 1000 VA, 50/60 Hz – suitable for worldwide applications
Interleaved copper windings reduce I2 R losses and maximize efficiency
55°C Rise, 105°C insulation system to minimize heat
Epoxy encapsulated to protect cores and coils against moisture, dirt, and other contaminants
Meets or exceeds NEMA Standard ST-1 and ANSI C89.1 for load inrush capability
Integrally molded, flame retardant (IEC 707/ISO Class I210) Terminal Blocks provide greater terminal contact area and improved conductivity
Heavy gauge steel mounting plate
Mounting dimensions are compatible with similar control transformers
Secondary fuse holders (FB2X) included for 13/32 x 1½ cartridges (fuses not included)
Factory-installed fuse holders are available (See W, WA & WB options)
Ten year limited warranty
