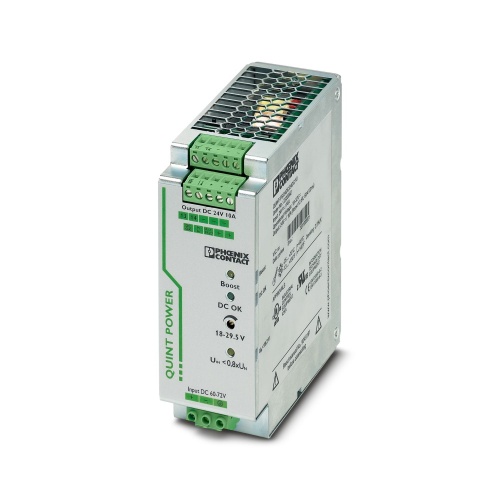

Phoenix Contact 2905011 DC/DC converter, protective coating QUINT-PS/60-72DC/24DC/10/CO
Normally In Stock
Code: 36908

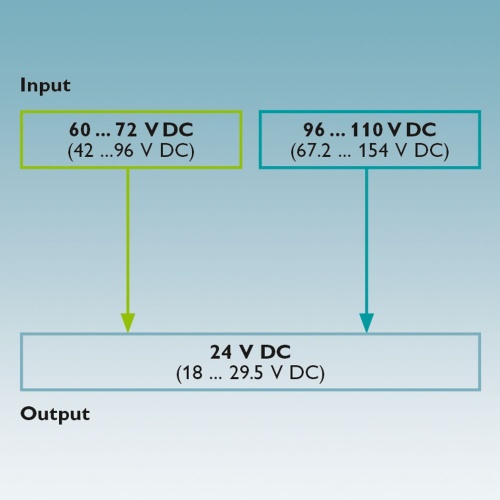

QUINT-PS/60-72DC/24DC/10/CO Phoenix Contact QUINT-PS/60-72DC/24DC/10/CO. (Protective Coating) dip coated, DC/DC Converter 60-72 VDC input (30-60Vdc) and 24 VDC output (18-29.5Vdc) 10 amp.
Condition: New
Usually ships Same Day or Next Day$728.47
Sale Price
$607.06
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2905011 The primary-switched QINT DC/DC converter is designed for DIN rail mounting and features a wide input voltage range of 60-72V DC. It also incorporates SFB technology for selective fuse breaking, allowing for reliable operation while providing protection against overcurrent conditions, with a specified output voltage of 24V DC and a maximum current rating of 10A.
Specifications
Power Supply Mounting
Din Rail Mount
Power Supply Number of Outputs
Single Output
Power Supply Voltage Output
24 VDC
Power Supply Housing
Enclosed
Power Supply Amperage Output
10 Amp
Manufacturer
Phoenix Contact
Line
QUINT
Power Supply Amperage Output Range
6-10 Amp
Power Supply Voltage Input Range
42 VDC - 96 VDC
Component
DC-DC
Features
Support conversion to various voltage levels
Preventive function monitoring indicates critical operating states before errors occur
Constant voltage: output voltage regenerated even at the end of long cables
Reliable starting of difficult loads, thanks to the static POWER BOOST power reserve with up to 125% nominal current permanently
Electrical isolation: for setting up independent supply systems
Optimum protection with dip coating for 100 % humidity
Downloads
Phoenix 2905011 CAD data International.dxfPhoenix 2905011 CAD data International.pdfPhoenix 2905011 CAD data International.stpPhoenix 2905011 Data Sheet English.pdfPhoenix 2905011 Manufacturers declaration International-2.pdfPhoenix 2905011 Manufacturers declaration International.pdfPhoenix 2905011 Package Slip International.pdfPhoenix 2905011 Tender Text English.zipPhoenix 2905011 Various English.pdfPhoenix 2905011 Various English.wmv
