Phoenix Contact 2905008 DC/DC converter QUINT-PS/48DC/48DC/5
Normally In Stock
Code: 36906
QUINT-PS/48DC/48DC/5 Phoenix Contact 2905008 DCDC Converter 48V48V 5A QUINT
Condition: New
Usually ships Same Day or Next Day$689.70
Sale Price
$574.75
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

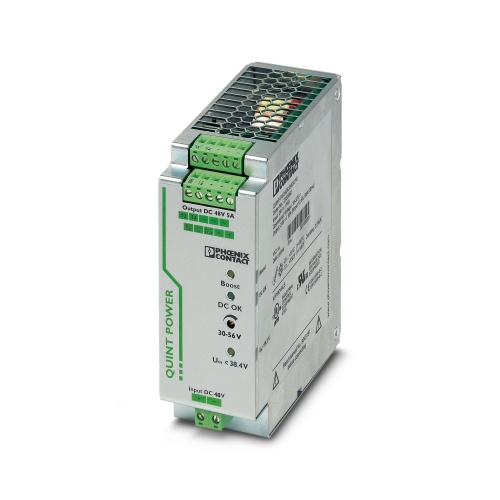

Phoenix Contact 2905008 A DIN rail mounted QUINT DC/DC converter is available with a built-in selective fuse breaking system that enables primary switching. This unit can be powered by a 48V DC source and provides an output of 48V DC at up to 5 amps.
Specifications
Power Supply Mounting
Din Rail Mount
Power Supply Number of Outputs
Single Output
Power Supply Voltage Output
48 VDC
Power Supply Housing
Enclosed
Power Supply Amperage Output
5 Amp
Manufacturer
Phoenix Contact
Line
QUINT
Power Supply Amperage Output Range
0-5 Amp
Power Supply Voltage Input Range
30 VDC - 60 VDC
Component
DC-DC
Features
Support conversion to various voltage levels
Preventive function monitoring indicates critical operating states before errors occur
Constant voltage: output voltage regenerated even at the end of long cables
Reliable starting of difficult loads, thanks to the static POWER BOOST power reserve with up to 125% nominal current permanently
Electrical isolation: for setting up independent supply systems
Downloads
Phoenix 2905008 CAD data International.dxfPhoenix 2905008 CAD data International.pdfPhoenix 2905008 CAD data International.stpPhoenix 2905008 Data Sheet English.pdfPhoenix 2905008 Manufacturers declaration International-2.pdfPhoenix 2905008 Manufacturers declaration International.pdfPhoenix 2905008 Package Slip International.pdfPhoenix 2905008 Tender Text English.zipPhoenix 2905008 Various English.pdfPhoenix 2905008 Various English.wmv
