Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

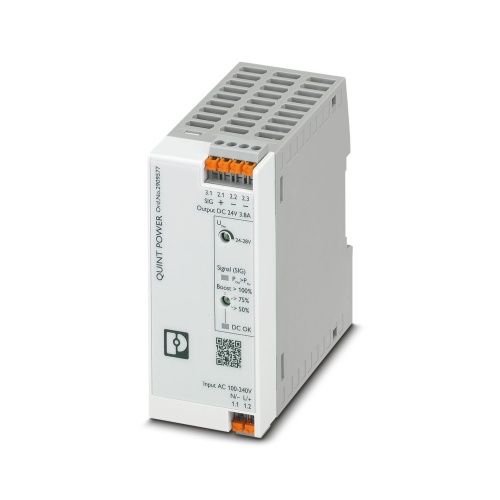

Phoenix Contact 2909577 Power supply unit QUINT4-PS/1AC/24DC/3.8/PT
Normally In Stock
Code: 36881
QUINT4-PS/1AC/24DC/3.8/PT Phoenix Contact QUINT4-PS/1AC/24DC/3.8/PT. 24 VDC output 3.8 Amp Premium Power Supply(Class 1 Div 2) with input voltage 85-240 Vac or 90-350 Vdc . Din rail mount Screw Connection. Temperature range of -13 F to 158 F.
Condition: New
Usually ships within 7-14 days. Call for ship time.$150.89
Sale Price
$125.74
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2909577 The QUINT POWER is a primary-switched power supply unit designed for convenient installation, featuring a push-in connection and DIN rail mounting for easy setup on any electrical rack or panel. It has a single-phase input and produces a stable 24V DC output with a maximum current capacity of 3.8 amps.
Specifications
Power Supply Type
Switching
Power Supply Mounting
Din Rail Mount
Power Supply Number of Outputs
Single Output
Power Supply Voltage Output
24 VDC
Power Supply Watts
90 Watt
Power Supply Housing
Enclosed
Component
Power Supply
Power Supply Amperage Output
3.8 Amp
Manufacturer
Phoenix Contact
Line
QUINT
Power Supply Amperage Output Range
0-5 Amp
Power Supply Voltage Input Range
85 VAC - 264 VAC
Power Supply Voltage Input Range
90 VDC - 350 VDC
Features
Space savings in the control cabinet, thanks to a narrow, slim-line design
Preventive function monitoring indicates critical operating states before errors occur
High efficiency and long service life, with low power dissipation and low heating
Starting of heavy loads with dynamic boost
Free selection between Push-in and screw connection
Downloads
Phoenix 2909577 CAD data International.dxfPhoenix 2909577 CAD data International.pdfPhoenix 2909577 CAD data International.stpPhoenix 2909577 Data Sheet English.pdfPhoenix 2909577 Manufacturers declaration English.pdfPhoenix 2909577 Manufacturers declaration International-2.pdfPhoenix 2909577 Manufacturers declaration International.pdfPhoenix 2909577 Package Slip International.pdfPhoenix 2909577 Tender Text English.zipPhoenix 2909577 Various English.pdfPhoenix 2909577 Various English.wmv
