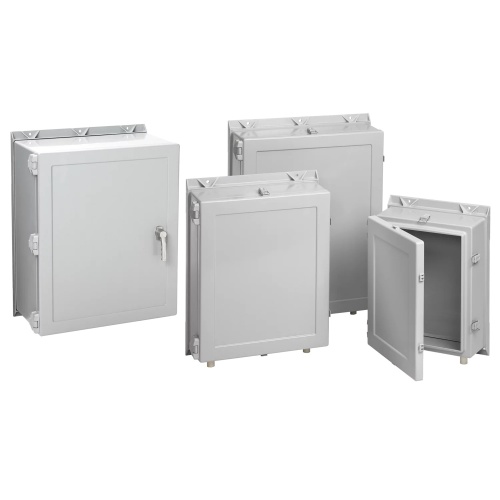

nVent Hoffman A20H1606GQRLP Non-Metallic Fiberglass Enclosure
Normally In Stock
Code: 3669
nVent Hoffman A20H1606GQRLP Enclosure 20.19 x 16.25 x 6.00 inch (HxWxD) Type 4X Fiberglass Enclosure hinged with fiberglass-reinforced polyester Quick-release latches with integral Type 316L stainless steel padlocking hasp. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$1428.76
Sale Price
$1190.63
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman A20H1606GQRLP Enclosure 20.19 x 16.25 x 6.00 inch (HxWxD) Type 4X Fiberglass Enclosure hinged with fiberglass-reinforced polyester Quick-release latches with integral Type 316L stainless steel padlocking hasp.
Specifications
Enclosure Depth
6"
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Interior Color
White
Enclosure Lock Type
Padlocking
Enclosure Interior Color
Gray
Enclosure Composition
Fiberglass
Enclosure Latch Type
3 Point
Enclosure NEMA Rating
NEMA Type 4
Enclosure NEMA Rating
NEMA Type 4X
Enclosure Width
16"
Enclosure Height
20"
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Component
Non-Metallic Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 3
Enclosure NEMA Rating
NEMA Type 3R
Enclosure NEMA Rating
NEMA Type 12
Enclosure NEMA Rating
NEMA Type 13
Manufacturer
Hoffman
Features
Gasket assures water-tight and dust-tight seal
Quick-release latch versions feature fiberglass-reinforced polyester latches with integral Type 316L stainless steel padlocking hasp
Seams are sealed, no holes or knockouts
Fiberglass material is easily punched, drilled, filed or sawed
Type 316L stainless steel padlocking PowerGlide Handle on 3-point latch versions assures security and a water-tight seal while still allowing convenient access
Fiberglass-reinforced material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties
Data pocket is high-impact thermoplastic
Copper-flashed steel collar studs for mounting optional panels and terminal block kits
Downloads
Hoffman A20H1606GQRLP 2D DXF CAD.zipHoffman A20H1606GQRLP 3D STEP CAD.zipHoffman A20H1606GQRLP CAD Drawing.zipHoffman A20H1606GQRLP Declaration of Compliance.pdfHoffman A20H1606GQRLP Dimension Drawing.gifHoffman A20H1606GQRLP EU Certification.pdfHoffman A20H1606GQRLP Spec Sheet.pdfHoffman A20H1606GQRLP UL Certification.pdfHoffman A20H1606GQRLP User Manual.pdf
