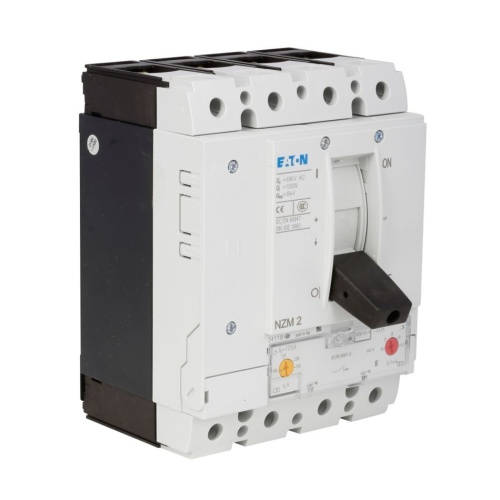

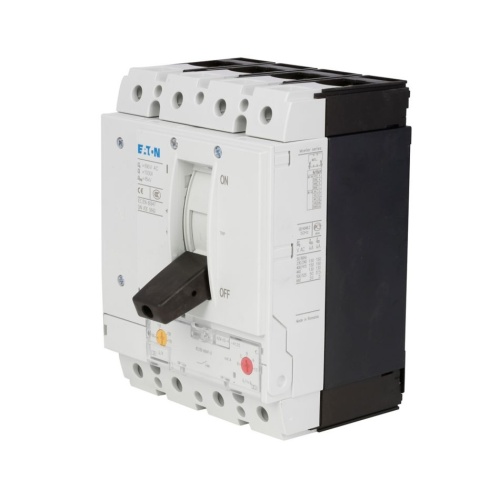

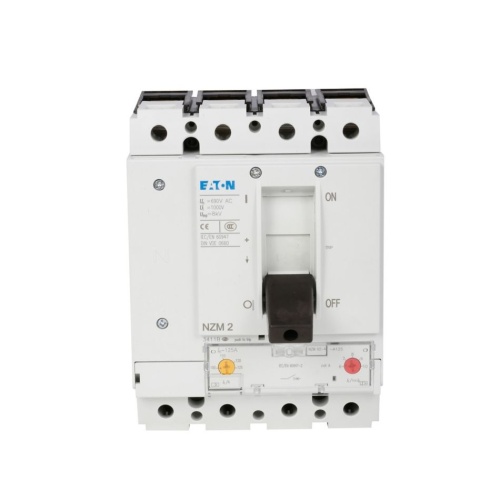

Eaton NZMH2-4-A200 NZM Series Series - 4P, 200 Amp, 690 VAC
Normally In Stock
Code: 360946
Eaton NZMH2-4-A200 - MCCB NZM, NZM2 TM Breaker, 160-200A OL Prot. Rng, Screw connection, front, 4 pole, 200A Perm. Current, 150 kA, 160-200A Set. Rng OL Prot., 1200-2000A Undelayed Adj. Rng., Rocker lever, motor drive optional
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$7152.72
Sale Price
$5960.60
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton NZMH2-4-A200 - Eaton's NZM Series molded case circuit breakers provide a globally-rated solution for panel builders and machinery OEMs. With four frame sizes ranging from 20A to 1600A, these compact breakers offer impressive switching capacities of up to 150 kA and operational voltages up to 690V. They come with a wide range of accessories and installation options, carry worldwide approvals (IEC, UL, CSA, CCC), and feature both thermal-magnetic and electronic trip units with diagnostics and data logging. Additionally, discrete relay outputs offer high-load warnings at 70%, 100%, and 120%. Ideal for global markets, the NZM Series includes selective LSI electronic trip units and motor protection with single-phase sensitivity, making it a versatile choice for power distribution and equipment protection.
Specifications
Amperage (Molded Case Breaker)
200 Amp
Poles (Molded Case Breaker)
Four Pole
Maximum Voltage (Molded Case Breaker)
690 VAC
Component
Molded Case Circuit Breaker
Manufacturer
Eaton
Frame Type (Molded Case Breaker)
NZM2 Frame
Maximum Voltage (Molded Case Breaker)
750 VDC
Interrupt Rating (Molded Case Breaker)
85-150 Ka
Features
Compact breaker with four frame sizes with ratings from 20A up to 1600A.
Switching capacities up to 150 kA and operational voltages up to 690V.
Extensive list of accessories and multiple installation and connection options.
Worldwide approvals available including IEC, UL, CSA and CCC.
Available with thermal magnetic and electronic tripping technology, including options for on-board diagnostics with data logging capability, which allows for monitoring of critical circuits without additional hardware.
Discrete relay outputs available for high load warnings at 70%, 100% and 120%.
