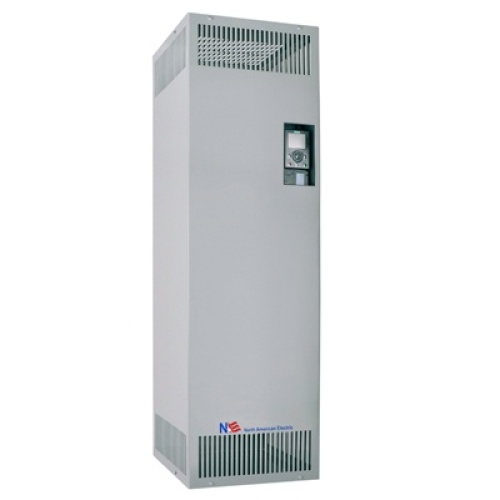

NAE 6SL3220-3YE44-0UF0-NEMA1 - 125 HP, VT, 480 Volt Three Phase
Normally In Stock
Code: 360869
NAE 6SL3220-3YE44-0UF0-NEMA1 - G120X Chassis Model - 156 Amp
Condition: New
Usually ships Same Day or Next Day$9040.20
Sale Price
$7533.50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
NAE 6SL3220-3YE44-0UF0-NEMA1 - 125 HP, 480V, General Purpose, Variable Torque/Low Overload, Package includes: Intelligent Operator Panel (IOP-2), High Resolution Graphic Color Keypad, DC Choke Built-In, 156 Amps, NEMA 1 Enclosure, Dimensions 44.66'' H, 13.27'' W, 14.87'' D, Siemens G120X Series Drive, Chassis Model # 6SL3220-3YE44-0UF0, Chassis Frame FSF, Two (2) Year Warranty, Some Assembly Required
Specifications
VFD Torque
Variable Torque
VFD Amperage Output
156 Amp
VFD Horsepower Output
125 HP
VFD Input Voltage
480 Volt Three Phase
VFD Output Voltage
480 Volt Three Phase
VFD NEMA-IP Rating
NEMA 1
Manufacturer
NAE
VFD Line
G120X
Features
NEMA 1 enclosure
Input Frequency: 47 Hz…63 Hz
Output Frequency: FSA…FSG - 0 Hz…550Hz (depending upon the control mode), FSH, FSJ - 0 Hz…150 Hz (depending upon the control mode)
Fundamental Power Factor (cos phi): 0.96…0.99
Efficiency Class: IE2 (Based on power losses according to EN 50598-2 and IEC 6 1800-9-2)
Sensorless less vector control (SLVC)
Communication: PROFINET, EtherNet / IP™
User Interface: Intelligent Operator Panel (IOP-2)
PID Loop Control Capable with Analog Input
DC Choke Built-In
Variable Torque / Low Overload
High Resolution Graphic Color Keypad
