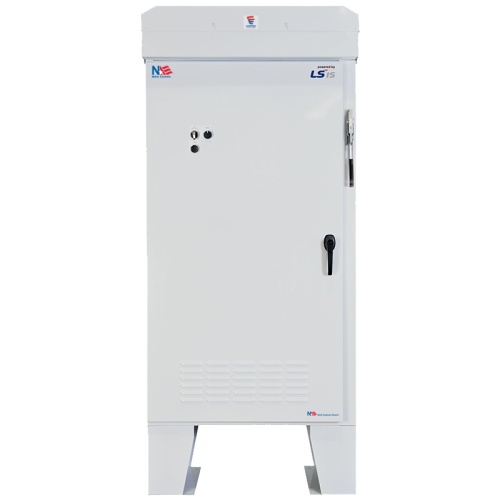

NAE 2010B-060T3P00-25J-C-000 - 60 HP, VT, 480 Volt 1 to 3 Phase
Normally In Stock
Code: 359789
NAE 2010B-060T3P00-25J-C-000 - iS7 Chassis Model - 94 Amp - Circuit Breaker Disconnect - Flanged Handle
Condition: New
Usually ships Same Day or Next Day$19671.18
Sale Price
$16392.65
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
NAE 2010B-060T3P00-25J-C-000 - 60 HP, 480V, General Purpose, Variable Torque, 1-Phase to 3-Phase, Economy Package includes: Start Pushbutton, HOA Switch, Potentiometer, Surge Suppressor, Line Reactor, 173.4 Input Amps, 94 Amps, NEMA 3R Enclosure with Advanced Tunnel Design, Flanged, Circuit Breaker Disconnect, Dimensions 65'' H, 40'' W, 22'' D, LSis iS7 Series Drive, Chassis Model # SV0750IS7-4NOD, Two (2) Year ''Bumper to Bumper'' Warranty
Specifications
VFD Torque
Variable Torque
VFD Horsepower Output
60 HP
VFD Output Voltage
480 Volt Three Phase
VFD Input Voltage
480 Volt Single Phase
VFD Amperage Output
94 Amp
VFD NEMA-IP Rating
NEMA 3R
Manufacturer
NAE
VFD Line
Is7
VFD Fused Disconnect
Circuit Breaker
Features
Fully Gasketed / NEMA 3R / Heavy Duty Vortex Cooling Tunnel Design for Maximum Cooling (40° C / 104° F)
Combination Circuit Breaker Disconnect: Flanged
Easy-to-use Drive for Basic Applications
Remote Start and Speed Control Capable with Analog Input
Drive Configured Utilizing V/Hz Control2
Line Side Harmonic Filtering including Line Reactor
Surge Supressor
Service Entry Rated
Heavy Duty Lifting Ears
Leg Stands Included
Padlockable Door and Disconnect
UL 508A Certified
