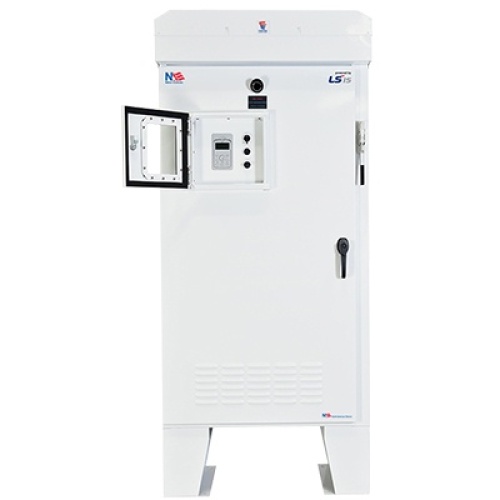

NAE 2010B-050T3P01-27V-C-000 - 50 HP, VT, 480 Volt 1 to 3 Phase
Normally In Stock
Code: 359785
NAE 2010B-050T3P01-27V-C-000 - iS7 Chassis Model - 78 Amp - Circuit Breaker Disconnect - Flanged Handle
Condition: New
Usually ships Same Day or Next Day$20901.65
Sale Price
$17418.04
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
NAE 2010B-050T3P01-27V-C-000 - 50 HP, 480V, Special Purpose, Variable Torque, Irrigation Package includes: Door Mounted Keypad with Lockable Metal/Windowed Protective Cover, Start Pushbutton, HOA Switch, Potentiometer, 0 - 10 Minute Restart (Backspin) Timer, 24/7 Programmable Timer, High Visibility Light, Line Reactor, 143.6 Input Amps, 78 Amps, NEMA 3R Enclosure with Advanced Tunnel Design, Flanged, Circuit Breaker Disconnect, Dimensions 65'' H, 40'' W, 22'' D, LSis iS7 Series Drive, Chassis Model # SV0550IS7-4NOD, ''Lightning & Surge'' Package (with Load Side Phase Protection), Three (3) Year ''Bumper to Bumper'' Warranty and NAE's ''No Hassle'' Chassis Exchange Program
Specifications
VFD Torque
Variable Torque
VFD Horsepower Output
50 HP
VFD Output Voltage
480 Volt Three Phase
VFD Amperage Output
78 Amp
VFD Input Voltage
480 Volt Single Phase
VFD NEMA-IP Rating
NEMA 3R
Manufacturer
NAE
VFD Line
Is7
VFD Fused Disconnect
Circuit Breaker
Features
Fully Gasketed / NEMA 3R / Heavy Duty Vortex Cooling Tunnel Design for Maximum Cooling (40° C / 104° F)
Combination Circuit Breaker Disconnect: Flanged
Lightning & Surge protection covering Mometary Anomaly Events
Line Side - Lightning, Surge, and Severe Overvoltage
Load Side - Single Phasing, Phase reversal and Voltage Imbalance
Service Entry Rated
Heavy Duty Lifting Ears
Leg Stands Included
Padlockable Door and Disconnect
