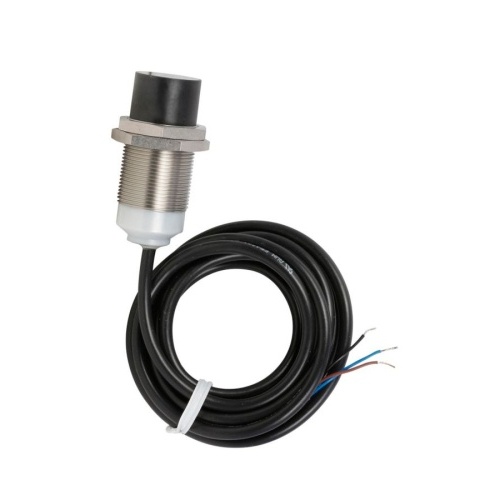

Eaton E59-A30C125C05-C1 Inductive Proximity Sensor
Normally In Stock
Code: 358359
Eaton E59-A30C125C05-C1 - E59 Series, 0 - 25 mm Sensing Range - Front cap: PPS,Tube: stainless steel,End bell: PC
Condition: New
Usually ships Same Day or Next Day$820.38
Sale Price
$683.65
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton E59-A30C125C05-C1 - 1.18 dia, Straight, Sensor dist.: 25 mm, Tube: Stainless Steel, 16 Ft. (5m) Cable, 15-30 Vdc input, < 30um after 1 hour warmup accuracy, Un-shielded
Specifications
Component
Inductive Proximity Sensor
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP67
(Instrument-Sensor) Size
M30
(Instrument-Sensor) IP Protection
IP69K
(Instrument-Sensor) NEMA Protection
NEMA 4
(Instrument-Sensor) NEMA Protection
NEMA 13
(Instrument-Sensor) NEMA Protection
NEMA 6P
(Instrument-Sensor) NEMA Protection
NEMA 6
(Instrument-Sensor) NEMA Protection
NEMA 12
Manufacturer
Eaton
(Instrument-Sensor) Type
Tubular
(Instrument-Sensor) Span
0 - 25 mm
(Instrument-Sensor) Supply Voltage
15-30 VDC
(Instrument-Sensor) Temperature Range
-40 °F - 158 °F
(Instrument-Sensor) Cable Length
16 Ft
Features
Extended linear sensing range of up to 25 millimeters—three times longer than standard tubular analog inductive sensors
Outputs available in current (4–20 or 0–20 mA) and voltage (0–10 V)
High output resolution and repeatability for applications requiring precision sensing performance
Robust stainless steel barrel, shock-resistant front cap, polycarbonate end bell and impactabsorbing potting compound
Ideal for extreme temperature or high pressure washdown environments
High noise immunity of 20 V/m prevents many problems associated with electrical noise
