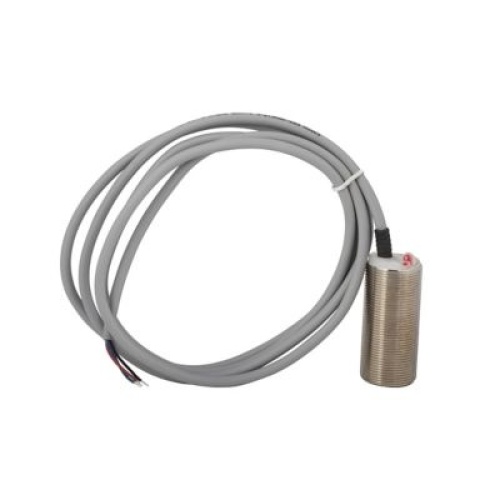

Eaton E57-18LE12-A5 Inductive Proximity Sensor
Normally In Stock
Code: 358321
Eaton E57-18LE12-A5 - E57 Series, 0 - 12 mm Sensing Range - 1 NO - 300 mA at 132 VAC - Front cap: PPS,End bell: PC,Tube: stainless steel - Green power up turns red when output energized
Condition: New
Usually ships Same Day or Next Day$498.91
Sale Price
$415.76
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton E57-18LE12-A5 - 0.71 dia, dist. 12 mm, 2-Wire AC, NO, 300 mA at 132 Vac, 16 Ft. (5m) Cable, 20-132 Vac input, <3% of sensing dist. accuracy, None, Semi-shielded, 16 Ft. (5m)
Specifications
Component
Inductive Proximity Sensor
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP67
(Instrument-Sensor) Contact Configuration
1 NO
(Instrument-Sensor) Size
M18
(Instrument-Sensor) Span
0 - 12 mm
(Instrument-Sensor) IP Protection
IP69K
(Instrument-Sensor) NEMA Protection
NEMA 4
(Instrument-Sensor) NEMA Protection
NEMA 13
(Instrument-Sensor) NEMA Protection
NEMA 6P
(Instrument-Sensor) NEMA Protection
NEMA 6
(Instrument-Sensor) NEMA Protection
NEMA 12
Manufacturer
Eaton
(Instrument-Sensor) Type
Tubular
(Instrument-Sensor) Temperature Range
-13 °F - 158 °F
(Instrument-Sensor) Connection Type
2 Wire
(Instrument-Sensor) Contact Rating
300 Ma At 132 VAC
(Instrument-Sensor) Supply Voltage
20-132 VAC
(Instrument-Sensor) Cable Length
16 Ft
Features
Stainless steel body
Operating voltage 10 – 30 Vdc
Short-circuit protection
Laser-engraved label
360-degree LED indicato
