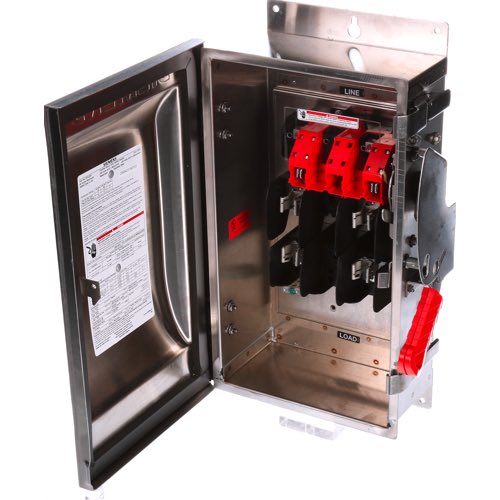

Siemens HF364S Fusible Disconnect Switch - 200 Amp, NEMA 4X
Normally In Stock
Code: 356701
Siemens HF364S - Heavy Duty Safety Switch Fused 3 Pole, 3W 600V 200A NEMA 4X - 19.291" x 34.646" x 9.449" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$5952.28
Sale Price
$4960.23
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Siemens HF364S - Elevate your power control with Siemens Heavy Duty Safety Disconnect Switches, offering a range of 30 to 1200 A ratings in 2, 3, 4, and 6 pole versions. Designed for diverse environments, these switches come in Type 1, 3R, 12, and 4X enclosures. Choose between fusible models for 240 V AC max. or 600 V AC/DC applications and non-fusible versions with a 600 V AC max. rating. Experience advanced fusing options, from Class H to Class R and Class J, while auxiliary contact kits enhance versatility. With UL98, UL508, and UL1741 PV listings, these switches ensure safety and compliance, making them a reliable choice for seamless power control and protection.
Specifications
Enclosure Composition
304 Stainless Steel
Enclosure NEMA Rating
NEMA 4X
Component
Fusible Disconnect Switch
Enclosure Environment Rating
Indoor
Voltage
600 VAC
Manufacturer
Siemens
Enclosure Environment Rating
Outdoor
Current
200 Amp
Enclosure Disconnect Type
Heavy Duty Safety Switch
Features
Heavy Duty Safety Switches are available in 30 -1200 A ratings, in Type 1, 3R, 12 and 4X enclosures and in 2, 3, 4 and 6 pole versions.
Fusible models are available for either 240 V AC max. or 600 V AC or 600 V DC applications. Non-fusible versions are available in 600 V AC max ratings and can be used on any AC voltage through 600 V AC.
Fusible versions accept Class H fuses as standard in 30-600 A ratings and can be converted to Class R fusing only with a field installed kit. 600 V rated fusible switches in 30-600 A ratings can be converted to accept Class J fuses by simply moving their load base. 800 and 1200 A fusible switches accept Class L fuses.
All accept aux contact kits. Neutrals are either factory installed or can be field added. All are UL98 listed (rotary switches are UL508 listed and solar disconnects are listed as UL1741 PV switches).
