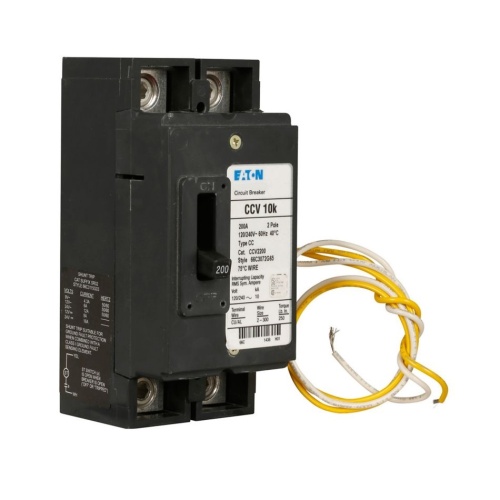

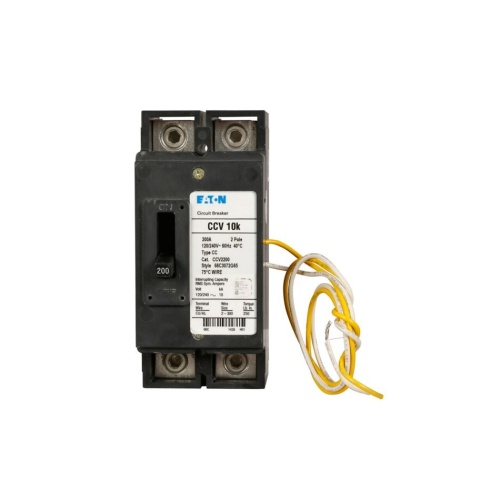

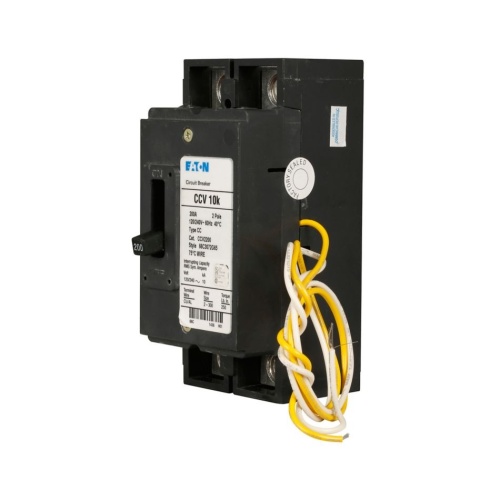

Eaton CCV2200SR01 Two Pole, 240 Max Volt, 200 Amp
Normally In Stock
Code: 354826
Eaton CCV2200SR01 - Main Breaker W/ Shunt Trip - Two Pole - 120 VAC, 240 VAC - 200 Amp
Condition: New
Usually ships Same Day or Next Day$1919.46
Sale Price
$1599.55
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton CCV2200SR01 - With 120 V Shunt Trip,200 A,10 kAIC,Two-pole,120/240 V,#2/0 AWG-300 kcmil Cu/Al,CCV,Type ECC unit enclosures - Terminals-standard lugs (wire connectors) suitable for copper or aluminum wire.
Specifications
Manufacturer
Eaton
Component
Main Breaker W/ Shunt Trip
Poles
Two Pole
Interrupt Rating
10 Ka
Amperage
200 Amp
Maximum Voltage
240 VAC
Maximum Voltage
120 VAC
Features
10-100 kAIC for range of interrupting capacities
Oversized 300 MCM load-side lugs on most main breakers
Easily interchangeable for custom solutions
