Code: 354802

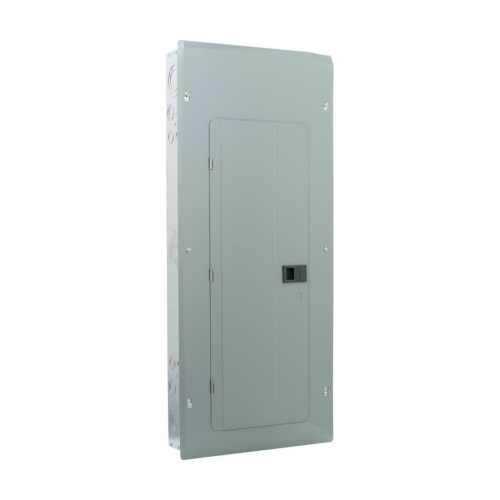

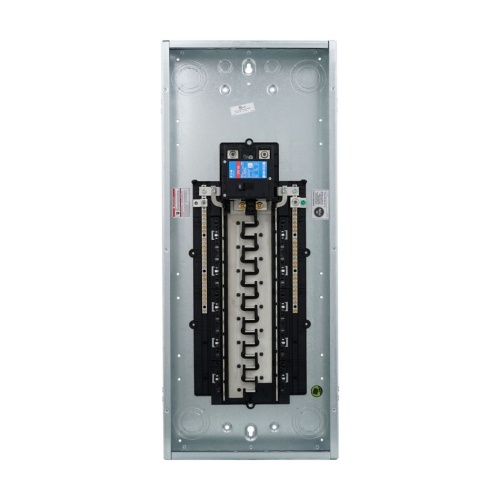

Eaton BRP30B150GW Single Pole, 240 Max Volt, 150 Amp
Normally In Stock
Eaton BRP30B150GW - Loadcenter - Single Pole - 120 VAC, 240 VAC - 150 Amp
Condition: New
Usually ships Same Day or Next Day$2473.37
Sale Price
$2061.14
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton BRP30B150GW - 150A,X6,Aluminum,Cover included,NEMA 1,Metallic,25 kAIC,CSR2125,60 circuits,Single pole,30 spaces,Two hots, a neutral, and a ground,Single-phase,White,Combination,NEMA 1,1,Type BR 1-inch break
Specifications
Amperage (Molded Case Breaker)
150 Amp
Poles (Molded Case Breaker)
Single Pole
Maximum Voltage (Molded Case Breaker)
240 VAC
Maximum Voltage (Molded Case Breaker)
120 VAC
Interrupt Rating (Molded Case Breaker)
25 Ka
Manufacturer
Eaton
Component
Loadcenter
Number of Spaces
30
Number of Circuits
60
Features
Plug-on neutral design provides time and labor-savings by eliminating the pigtail
Twin neutral design located in wireway, away from circuit breakers, means easier wiring and balancing of the load
Extra 1.5-inch knock-out for bundling allows maximum wiring gutter space for ease of wiring in compliance with NEC requirements
Standard 14-3/8 inches (365.1 mm) wide enclosures fit snugly between wall studs
Tangential main knock-out eliminates the need for conduit offsets, which permits faster, easier installation
BR loadcenters feature slotted square combo screwheads, which means only one screwdriver is need for installation
