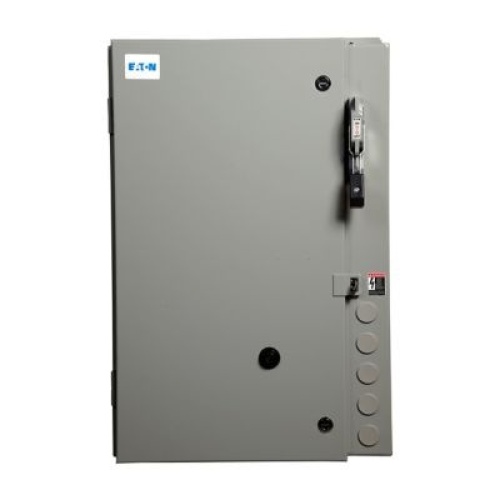

Eaton ECN1632AAA-E3 Non-Reversing Starter - 50 Amp, 110/120 VAC Coil
Normally In Stock
Code: 353692
Eaton ECN1632AAA-E3 - 24V/60 Hz - NEMA 1 - Combination non-reversing starter—circuit breaker - 50 A - 3 Phase
Condition: New
Usually ships Same Day or Next Day$14166.40
Sale Price
$11805.33
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton ECN1632AAA-E3 - Introducing Eaton's Freedom Series™ NEMA Contactors and Starters: a robust lineup of compact, space-efficient designs fortified with high-strength, impact-resistant insulating materials. These products boast a host of features, including the C440 solid-state electronic overload for reliable protection and communication capabilities, adaptable bimetallic ambient-compensated overload relays with interchangeable heater packs, and snap-on accessories like auxiliary contacts, timers, and more. With practical benefits such as straight-through wiring, flexible mounting options, accessible terminals, and screw-type power terminals, these solutions provide easy installation and operation. Additionally, the design adheres to international standards and listings, ensuring a dependable choice for your power control needs.
Specifications
Starter Frequency
60 Hz
Starter Coil Voltage
110 VAC
Starter Frequency
50 Hz
Starter Reversing Capability
Non-Reversing
Starter Amperage
50 Amp
Manufacturer
Eaton
Starter Phase
Three Phase
Component
Non-Reversing Starter
Starter Enclosure Type
NEMA 3R Oversize
Starter Maximum Voltage
120 VAC
Features
C440 solid-state electronic overload providing reliable, accurate and value-driven protection, including communication capabilities, while reducing inventory carrying costs with wide FLA adjustment (5:1) and selectable trip class
Adjustable bimetallic ambient compensated overload relays with interchangeable heater packs—available in three basic sizes, covering applications up to 900 hp
Fixed heater overloads optional
A full line of snap-on accessories—top and side mounted auxiliary contacts, solid-state and pneumatic timers, and so on
Straight-through wiring— line lugs at top, load lugs at bottom
Horizontal or vertical mounting on upright panel for application freedom
Screw type power terminals have captive, backed-out self-lifting pressure plates with ± screws—reduced wiring time
Accessible terminals for easy wiring. Optional fingerproof shields available to prevent electrical shock
Top located coil terminals convenient and readily accessible. 45 mm contactor magnet coils have three terminals, permitting either top or diagonal wiring—easy to replace European or U.S. style starters or contactors without changing wiring layout
Encapsulated dual voltage/ frequency magnet coils— permanently marked with voltage, frequency and part number
Designed to meet or exceed UL, CSA®, IEC, VDE, BS and other international standards and listings
